[42] 四个 服务器设计模型
五个简单TCP协议(MuduoManual.pdf P50) muduo库网络模型使用示例(sudoku求解服务器MuduoManual.pdf P35 )
- reactor(一个IO线程)
- reactor + threadpool (一个IO + 多个计算线程)
- multiple reactor (多个IO线程)

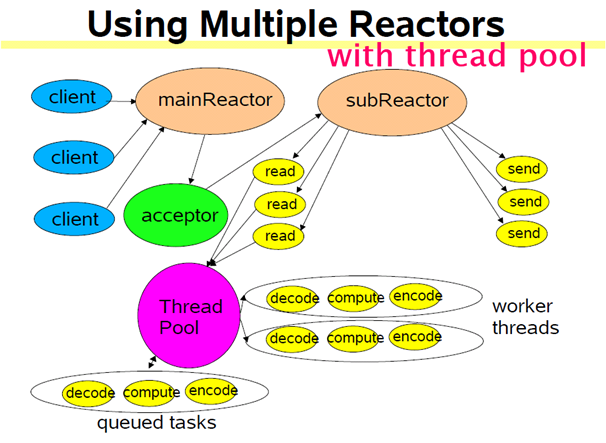

- one loop per thread + thread pool (多个IO线程 + 计算线程池)
网络编程关注4个半事件:
- 连接建立
- 连接断开
- 消息到达
- 信息发送完毕(对于低流量的服务来说,通常不需要关注该事件)
如何实现server
- 提供一个xxxServer类
- 在该类中包含一个TcpServer对象
注册一些事件
- OnConnection
- OnMessage
- OnWriteComplete
- TcpConnection::shutdown()内部实现,只关闭写入这一半
下面的程序都是用来解 数独 的,数独的实现如下
sudoku.h
#ifndef MUDUO_EXAMPLES_SUDOKU_SUDOKU_H
#define MUDUO_EXAMPLES_SUDOKU_SUDOKU_H
#include <muduo/base/Types.h>
// FIXME, use (const char*, len) for saving memory copying.
muduo::string solveSudoku(const muduo::string& puzzle);
const int kCells = 81;
#endif
sudoku.cc
#include "sudoku.h"
#include <vector>
#include <assert.h>
#include <string.h>
using namespace muduo;
struct Node;
typedef Node Column;
struct Node
{
Node* left;
Node* right;
Node* up;
Node* down;
Column* col;
int name;
int size;
};
const int kMaxNodes = 1 + 81*4 + 9*9*9*4;
const int kMaxColumns = 400;
const int kRow = 100, kCol = 200, kBox = 300;
class SudokuSolver
{
public:
SudokuSolver(int board[kCells])
: inout_(board),
cur_node_(0)
{
stack_.reserve(100);
root_ = new_column();
root_->left = root_->right = root_;
memset(columns_, 0, sizeof(columns_));
bool rows[kCells][10] = { {false} };
bool cols[kCells][10] = { {false} };
bool boxes[kCells][10] = { {false} };
for (int i = 0; i < kCells; ++i) {
int row = i / 9;
int col = i % 9;
int box = row/3*3 + col/3;
int val = inout_[i];
rows[row][val] = true;
cols[col][val] = true;
boxes[box][val] = true;
}
for (int i = 0; i < kCells; ++i) {
if (inout_[i] == 0) {
append_column(i);
}
}
for (int i = 0; i < 9; ++i) {
for (int v = 1; v < 10; ++v) {
if (!rows[i][v])
append_column(get_row_col(i, v));
if (!cols[i][v])
append_column(get_col_col(i, v));
if (!boxes[i][v])
append_column(get_box_col(i, v));
}
}
for (int i = 0; i < kCells; ++i) {
if (inout_[i] == 0) {
int row = i / 9;
int col = i % 9;
int box = row/3*3 + col/3;
//int val = inout[i];
for (int v = 1; v < 10; ++v) {
if (!(rows[row][v] || cols[col][v] || boxes[box][v])) {
Node* n0 = new_row(i);
Node* nr = new_row(get_row_col(row, v));
Node* nc = new_row(get_col_col(col, v));
Node* nb = new_row(get_box_col(box, v));
put_left(n0, nr);
put_left(n0, nc);
put_left(n0, nb);
}
}
}
}
}
bool solve()
{
if (root_->left == root_) {
for (size_t i = 0; i < stack_.size(); ++i) {
Node* n = stack_[i];
int cell = -1;
int val = -1;
while (cell == -1 || val == -1) {
if (n->name < 100)
cell = n->name;
else
val = n->name % 10;
n = n->right;
}
//assert(cell != -1 && val != -1);
inout_[cell] = val;
}
return true;
}
Column* const col = get_min_column();
cover(col);
for (Node* row = col->down; row != col; row = row->down) {
stack_.push_back(row);
for (Node* j = row->right; j != row; j = j->right) {
cover(j->col);
}
if (solve()) {
return true;
}
stack_.pop_back();
for (Node* j = row->left; j != row; j = j->left) {
uncover(j->col);
}
}
uncover(col);
return false;
}
private:
Column* root_;
int* inout_;
Column* columns_[400];
std::vector<Node*> stack_;
Node nodes_[kMaxNodes];
int cur_node_;
Column* new_column(int n = 0)
{
assert(cur_node_ < kMaxNodes);
Column* c = &nodes_[cur_node_++];
memset(c, 0, sizeof(Column));
c->left = c;
c->right = c;
c->up = c;
c->down = c;
c->col = c;
c->name = n;
return c;
}
void append_column(int n)
{
assert(columns_[n] == NULL);
Column* c = new_column(n);
put_left(root_, c);
columns_[n] = c;
}
Node* new_row(int col)
{
assert(columns_[col] != NULL);
assert(cur_node_ < kMaxNodes);
Node* r = &nodes_[cur_node_++];
//Node* r = new Node;
memset(r, 0, sizeof(Node));
r->left = r;
r->right = r;
r->up = r;
r->down = r;
r->name = col;
r->col = columns_[col];
put_up(r->col, r);
return r;
}
int get_row_col(int row, int val)
{
return kRow+row*10+val;
}
int get_col_col(int col, int val)
{
return kCol+col*10+val;
}
int get_box_col(int box, int val)
{
return kBox+box*10+val;
}
Column* get_min_column()
{
Column* c = root_->right;
int min_size = c->size;
if (min_size > 1) {
for (Column* cc = c->right; cc != root_; cc = cc->right) {
if (min_size > cc->size) {
c = cc;
min_size = cc->size;
if (min_size <= 1)
break;
}
}
}
return c;
}
void cover(Column* c)
{
c->right->left = c->left;
c->left->right = c->right;
for (Node* row = c->down; row != c; row = row->down) {
for (Node* j = row->right; j != row; j = j->right) {
j->down->up = j->up;
j->up->down = j->down;
j->col->size--;
}
}
}
void uncover(Column* c)
{
for (Node* row = c->up; row != c; row = row->up) {
for (Node* j = row->left; j != row; j = j->left) {
j->col->size++;
j->down->up = j;
j->up->down = j;
}
}
c->right->left = c;
c->left->right = c;
}
void put_left(Column* old, Column* nnew)
{
nnew->left = old->left;
nnew->right = old;
old->left->right = nnew;
old->left = nnew;
}
void put_up(Column* old, Node* nnew)
{
nnew->up = old->up;
nnew->down = old;
old->up->down = nnew;
old->up = nnew;
old->size++;
nnew->col = old;
}
};
string solveSudoku(const string& puzzle)
{
assert(puzzle.size() == implicit_cast<size_t>(kCells));
string result = "NoSolution";
int board[kCells] = { 0 };
bool valid = true;
for (int i = 0; i < kCells; ++i)
{
board[i] = puzzle[i] - '0';
valid = valid && (0 <= board[i] && board[i] <= 9);
}
if (valid)
{
SudokuSolver s(board);
if (s.solve())
{
result.clear();
result.resize(kCells);
for (int i = 0; i < kCells; ++i)
{
result[i] = static_cast<char>(board[i] + '0');
}
}
}
return result;
}
reactor模型
只有一个IO线程:这个IO线程既负责listenfd也负责connfd
#include "sudoku.h"
#include <muduo/base/Atomic.h>
#include <muduo/base/Logging.h>
#include <muduo/base/Thread.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <muduo/net/TcpServer.h>
#include <boost/bind.hpp>
#include <utility>
#include <mcheck.h>
#include <stdio.h>
#include <unistd.h>
using namespace muduo;
using namespace muduo::net;
class SudokuServer
{
public:
SudokuServer(EventLoop* loop, const InetAddress& listenAddr)
: loop_(loop),
server_(loop, listenAddr, "SudokuServer"),
startTime_(Timestamp::now())
{
server_.setConnectionCallback(
boost::bind(&SudokuServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&SudokuServer::onMessage, this, _1, _2, _3));
}
void start()
{
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
LOG_TRACE << conn->peerAddress().toIpPort() << " -> "
<< conn->localAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
}
void onMessage(const TcpConnectionPtr& conn, Buffer* buf, Timestamp)
{
LOG_DEBUG << conn->name();
size_t len = buf->readableBytes();
while (len >= kCells + 2)
{
const char* crlf = buf->findCRLF();
if (crlf)
{
string request(buf->peek(), crlf);
buf->retrieveUntil(crlf + 2);
len = buf->readableBytes();
if (!processRequest(conn, request))
{
conn->send("Bad Request!\r\n");
conn->shutdown();
break;
}
}
else if (len > 100) // id + ":" + kCells + "\r\n"
{
conn->send("Id too long!\r\n");
conn->shutdown();
break;
}
else
{
break;
}
}
}
bool processRequest(const TcpConnectionPtr& conn, const string& request)
{
string id;
string puzzle;
bool goodRequest = true;
string::const_iterator colon = find(request.begin(), request.end(), ':');
if (colon != request.end())
{
id.assign(request.begin(), colon);
puzzle.assign(colon+1, request.end());
}
else
{
puzzle = request;
}
if (puzzle.size() == implicit_cast<size_t>(kCells))
{
LOG_DEBUG << conn->name();
string result = solveSudoku(puzzle);
if (id.empty())
{
conn->send(result+"\r\n");
}
else
{
conn->send(id+":"+result+"\r\n");
}
}
else
{
goodRequest = false;
}
return goodRequest;
}
EventLoop* loop_;
TcpServer server_;
Timestamp startTime_;
};
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid() << ", tid = " << CurrentThread::tid();
EventLoop loop;
InetAddress listenAddr(9981);
SudokuServer server(&loop, listenAddr);
server.start();
loop.loop();
}
multiple reactor
- IO线程的数目多个
- EventLoopThreadPoll IO线程池
- 直接设置server_.setThreadNum(numThreads)就OK了
main reactor 负责listenfd accept , sub reactor 负责connfd, 使用roundbin轮叫策略 来一个连接,就选择下一个EventLoop,这样让多个连接分配给若干个EventLoop来处理, 而每个EventLoop属于一个IO线程,也就意味着,多个连接分配给若干个IO线程来处理。
include "sudoku.h"
#include <muduo/base/Atomic.h>
#include <muduo/base/Logging.h>
#include <muduo/base/Thread.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <muduo/net/TcpServer.h>
#include <boost/bind.hpp>
#include <utility>
#include <mcheck.h>
#include <stdio.h>
#include <unistd.h>
using namespace muduo;
using namespace muduo::net;
class SudokuServer
{
public:
SudokuServer(EventLoop* loop, const InetAddress& listenAddr, int numThreads)
: loop_(loop),
server_(loop, listenAddr, "SudokuServer"),
numThreads_(numThreads),
startTime_(Timestamp::now())
{
server_.setConnectionCallback(
boost::bind(&SudokuServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&SudokuServer::onMessage, this, _1, _2, _3));
server_.setThreadNum(numThreads);
}
void start()
{
LOG_INFO << "starting " << numThreads_ << " threads.";
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
LOG_TRACE << conn->peerAddress().toIpPort() << " -> "
<< conn->localAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
}
void onMessage(const TcpConnectionPtr& conn, Buffer* buf, Timestamp)
{
LOG_DEBUG << conn->name();
size_t len = buf->readableBytes();
while (len >= kCells + 2)
{
const char* crlf = buf->findCRLF();
if (crlf)
{
string request(buf->peek(), crlf);
buf->retrieveUntil(crlf + 2);
len = buf->readableBytes();
if (!processRequest(conn, request))
{
conn->send("Bad Request!\r\n");
conn->shutdown();
break;
}
}
else if (len > 100) // id + ":" + kCells + "\r\n"
{
conn->send("Id too long!\r\n");
conn->shutdown();
break;
}
else
{
break;
}
}
}
bool processRequest(const TcpConnectionPtr& conn, const string& request)
{
string id;
string puzzle;
bool goodRequest = true;
string::const_iterator colon = find(request.begin(), request.end(), ':');
if (colon != request.end())
{
id.assign(request.begin(), colon);
puzzle.assign(colon+1, request.end());
}
else
{
puzzle = request;
}
if (puzzle.size() == implicit_cast<size_t>(kCells))
{
LOG_DEBUG << conn->name();
string result = solveSudoku(puzzle);
if (id.empty())
{
conn->send(result+"\r\n");
}
else
{
conn->send(id+":"+result+"\r\n");
}
}
else
{
goodRequest = false;
}
return goodRequest;
}
EventLoop* loop_;
TcpServer server_;
int numThreads_;
Timestamp startTime_;
};
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid() << ", tid = " << CurrentThread::tid();
int numThreads = 0;
if (argc > 1)
{
numThreads = atoi(argv[1]);
}
EventLoop loop;
InetAddress listenAddr(9981);
SudokuServer server(&loop, listenAddr, numThreads);
server.start();
loop.loop();
}
reactor + threadPool
- 一个IO线程,多个计算thread的模式
- EventLoop + threadpool + numThreads_
include "sudoku.h"
#include <muduo/base/Atomic.h>
#include <muduo/base/Logging.h>
#include <muduo/base/Thread.h>
#include <muduo/base/ThreadPool.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <muduo/net/TcpServer.h>
#include <boost/bind.hpp>
#include <utility>
#include <mcheck.h>
#include <stdio.h>
#include <unistd.h>
using namespace muduo;
using namespace muduo::net;
class SudokuServer
{
public:
SudokuServer(EventLoop* loop, const InetAddress& listenAddr, int numThreads)
: loop_(loop),
server_(loop, listenAddr, "SudokuServer"),
numThreads_(numThreads),
startTime_(Timestamp::now())
{
server_.setConnectionCallback(
boost::bind(&SudokuServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&SudokuServer::onMessage, this, _1, _2, _3));
}
void start()
{
LOG_INFO << "starting " << numThreads_ << " threads.";
threadPool_.start(numThreads_);//线程池的线程个数
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
LOG_TRACE << conn->peerAddress().toIpPort() << " -> "
<< conn->localAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
}
void onMessage(const TcpConnectionPtr& conn, Buffer* buf, Timestamp)
{
LOG_DEBUG << conn->name();
size_t len = buf->readableBytes();
while (len >= kCells + 2)
{
const char* crlf = buf->findCRLF();
if (crlf)
{
string request(buf->peek(), crlf);
buf->retrieveUntil(crlf + 2);
len = buf->readableBytes();
if (!processRequest(conn, request))
{
conn->send("Bad Request!\r\n");
conn->shutdown();
break;
}
}
else if (len > 100) // id + ":" + kCells + "\r\n"
{
conn->send("Id too long!\r\n");
conn->shutdown();
break;
}
else
{
break;
}
}
}
bool processRequest(const TcpConnectionPtr& conn, const string& request)
{
string id;
string puzzle;
bool goodRequest = true;
string::const_iterator colon = find(request.begin(), request.end(), ':');
if (colon != request.end())
{
id.assign(request.begin(), colon);
puzzle.assign(colon+1, request.end());
}
else
{
puzzle = request;
}
/*计算线程中的线程进行处理*/
if (puzzle.size() == implicit_cast<size_t>(kCells))
{
threadPool_.run(boost::bind(&solve, conn, puzzle, id));
}
else
{
goodRequest = false;
}
return goodRequest;
}
static void solve(const TcpConnectionPtr& conn,
const string& puzzle,
const string& id)
{
LOG_DEBUG << conn->name();
string result = solveSudoku(puzzle);
/*这里处理完数据后,conn->send() 还是在IO线程中发送,而不是
在计算线程中处理
*/
if (id.empty())
{
conn->send(result+"\r\n");
}
else
{
conn->send(id+":"+result+"\r\n");
}
}
EventLoop* loop_;
TcpServer server_;
ThreadPool threadPool_; //计算线程池
int numThreads_;
Timestamp startTime_;
};
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid() << ", tid = " << CurrentThread::tid();
int numThreads = 0;
if (argc > 1)
{
numThreads = atoi(argv[1]);
}
EventLoop loop;
InetAddress listenAddr(9981);
SudokuServer server(&loop, listenAddr, numThreads);
server.start();
loop.loop();
}
multiple reactors+threadpool
EventLoopThreadPoll + threadpool + IOnumThreads_ + ThreadPoolnumThreads_
include "sudoku.h"
#include <muduo/base/Atomic.h>
#include <muduo/base/Logging.h>
#include <muduo/base/Thread.h>
#include <muduo/base/ThreadPool.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <muduo/net/TcpServer.h>
#include <boost/bind.hpp>
#include <utility>
#include <mcheck.h>
#include <stdio.h>
#include <unistd.h>
using namespace muduo;
using namespace muduo::net;
class SudokuServer
{
public:
SudokuServer(EventLoop* loop, const InetAddress& listenAddr, int numThreads)
: loop_(loop),
server_(loop, listenAddr, "SudokuServer"),
numThreads_(numThreads),
startTime_(Timestamp::now())
{
server_.setConnectionCallback(
boost::bind(&SudokuServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&SudokuServer::onMessage, this, _1, _2, _3));
server_.setThreadNum(numThreads);//IO线程池的初始化
}
void start()
{
LOG_INFO << "starting " << numThreads_ << " threads.";
threadPool_.start(numThreads_);
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
LOG_TRACE << conn->peerAddress().toIpPort() << " -> "
<< conn->localAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
}
void onMessage(const TcpConnectionPtr& conn, Buffer* buf, Timestamp)
{
LOG_DEBUG << conn->name();
size_t len = buf->readableBytes();
while (len >= kCells + 2)
{
const char* crlf = buf->findCRLF();
if (crlf)
{
string request(buf->peek(), crlf);
buf->retrieveUntil(crlf + 2);
len = buf->readableBytes();
if (!processRequest(conn, request))
{
conn->send("Bad Request!\r\n");
conn->shutdown();
break;
}
}
else if (len > 100) // id + ":" + kCells + "\r\n"
{
conn->send("Id too long!\r\n");
conn->shutdown();
break;
}
else
{
break;
}
}
}
bool processRequest(const TcpConnectionPtr& conn, const string& request)
{
string id;
string puzzle;
bool goodRequest = true;
string::const_iterator colon = find(request.begin(), request.end(), ':');
if (colon != request.end())
{
id.assign(request.begin(), colon);
puzzle.assign(colon+1, request.end());
}
else
{
puzzle = request;
}
/*计算线程中的线程进行处理*/
if (puzzle.size() == implicit_cast<size_t>(kCells))
{
threadPool_.run(boost::bind(&solve, conn, puzzle, id));
}
else
{
goodRequest = false;
}
return goodRequest;
}
static void solve(const TcpConnectionPtr& conn,
const string& puzzle,
const string& id)
{
LOG_DEBUG << conn->name();
string result = solveSudoku(puzzle);
/*这里处理完数据后,conn->send() 还是在IO线程中发送,而不是
在计算线程中处理
*/
if (id.empty())
{
conn->send(result+"\r\n");
}
else
{
conn->send(id+":"+result+"\r\n");
}
}
EventLoop* loop_;
TcpServer server_;
ThreadPool threadPool_;
int numThreads_;
Timestamp startTime_;
};
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid() << ", tid = " << CurrentThread::tid();
int numThreads = 0;
if (argc > 1)
{
numThreads = atoi(argv[1]);
}
EventLoop loop;
InetAddress listenAddr(9981);
SudokuServer server(&loop, listenAddr, numThreads);
server.start();
loop.loop();
}
sudoKu 求解服务器,既是一个IO密集型,又是一个计算密集型的服务
IO线程池 + 计算线程池 计算时间如果比较久,就会使得IO线程阻塞,IO线程很快就用尽,就不处理大量的并发连接 一个IO线程+计算线程池 使用muduo 库来编程还是比较容易的,有兴趣的朋友可以试一下!
[43] 文件传输服务器
- 文件传输(MuduoManual.pdf P57)
- examples/filetransfer/download.cc
- examples/filetransfer/download2.cc
- examples/filetransfer/download3.cc
tests/Filetransfer_test.cc
单线程模式之一次性发完一个文件
#include <muduo/base/Logging.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/TcpServer.h>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
const char* g_file = NULL;
// FIXME: use FileUtil::readFile()
string readFile(const char* filename)
{
string content;
FILE* fp = ::fopen(filename, "rb");
if (fp)
{
// inefficient!!!
const int kBufSize = 1024*1024;
char iobuf[kBufSize];
::setbuffer(fp, iobuf, sizeof iobuf);
char buf[kBufSize];
size_t nread = 0;
while ( (nread = ::fread(buf, 1, sizeof buf, fp)) > 0)
{
content.append(buf, nread);
}
::fclose(fp);
}
return content;
}
void onHighWaterMark(const TcpConnectionPtr& conn, size_t len)
{
LOG_INFO << "HighWaterMark " << len;
}
void onConnection(const TcpConnectionPtr& conn)
{
LOG_INFO << "FileServer - " << conn->peerAddress().toIpPort() << " -> "
<< conn->localAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
if (conn->connected())
{
LOG_INFO << "FileServer - Sending file " << g_file
<< " to " << conn->peerAddress().toIpPort();
conn->setHighWaterMarkCallback(onHighWaterMark, 64*1024);
string fileContent = readFile(g_file);
conn->send(fileContent);
conn->shutdown();
LOG_INFO << "FileServer - done";
}
}
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid();
if (argc > 1)
{
g_file = argv[1];
EventLoop loop;
InetAddress listenAddr(2021);
TcpServer server(&loop, listenAddr, "FileServer");
server.setConnectionCallback(onConnection);
server.start();
loop.loop();
}
else
{
fprintf(stderr, "Usage: %s file_for_downloading\n", argv[0]);
}
}
单线程模型之分块发送文件
#include <muduo/base/Logging.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/TcpServer.h>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
void onHighWaterMark(const TcpConnectionPtr& conn, size_t len)
{
LOG_INFO << "HighWaterMark " << len;
}
const int kBufSize = 64*1024;
const char* g_file = NULL;
void onConnection(const TcpConnectionPtr& conn)
{
LOG_INFO << "FileServer - " << conn->peerAddress().toIpPort() << " -> "
<< conn->localAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
if (conn->connected())
{
LOG_INFO << "FileServer - Sending file " << g_file
<< " to " << conn->peerAddress().toIpPort();
/*高水位标志的回调函数*/
conn->setHighWaterMarkCallback(onHighWaterMark, kBufSize+1);
FILE* fp = ::fopen(g_file, "rb");
if (fp)
{
/*设置conn 的上下文*/
conn->setContext(fp);
char buf[kBufSize];
size_t nread = ::fread(buf, 1, sizeof buf, fp);
conn->send(buf, nread);
}
/*发送完毕就shutdown connection*/
else
{
conn->shutdown();
LOG_INFO << "FileServer - no such file";
}
}
/*如果连接关闭,那么就关闭文件指针*/
else
{
if (!conn->getContext().empty())
{
FILE* fp = boost::any_cast<FILE*>(conn->getContext());
if (fp)
{
::fclose(fp);
}
}
}
}
/*如果发完一块,还有其他块,那么接着发送,这只fp是保存在
connection的上下文中,所以是同一个文件指针*/
void onWriteComplete(const TcpConnectionPtr& conn)
{
FILE* fp = boost::any_cast<FILE*>(conn->getContext());
char buf[kBufSize];
size_t nread = ::fread(buf, 1, sizeof buf, fp);
if (nread > 0)
{
conn->send(buf, nread);
}
/*如果发完也关闭掉*/
else
{
::fclose(fp);
fp = NULL;
conn->setContext(fp);
conn->shutdown();
LOG_INFO << "FileServer - done";
}
}
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid();
if (argc > 1)
{
g_file = argv[1];
EventLoop loop;
InetAddress listenAddr(2021);
TcpServer server(&loop, listenAddr, "FileServer");
server.setConnectionCallback(onConnection);
server.setWriteCompleteCallback(onWriteComplete);
server.start();
loop.loop();
}
else
{
fprintf(stderr, "Usage: %s file_for_downloading\n", argv[0]);
}
}
单线程模型之分块发送(智能指针)
#include <muduo/base/Logging.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/TcpServer.h>
#include <boost/shared_ptr.hpp>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
/*这个程序和第二个是一样,只是这里的文件指针是智能共享的,
不用我们手动关闭*/
void onHighWaterMark(const TcpConnectionPtr& conn, size_t len)
{
LOG_INFO << "HighWaterMark " << len;
}
const int kBufSize = 64*1024;
const char* g_file = NULL;
typedef boost::shared_ptr<FILE> FilePtr;
void onConnection(const TcpConnectionPtr& conn)
{
LOG_INFO << "FileServer - " << conn->peerAddress().toIpPort() << " -> "
<< conn->localAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
if (conn->connected())
{
LOG_INFO << "FileServer - Sending file " << g_file
<< " to " << conn->peerAddress().toIpPort();
conn->setHighWaterMarkCallback(onHighWaterMark, kBufSize+1);
FILE* fp = ::fopen(g_file, "rb");
if (fp)
{
/*这里ctx接受两个参数,因为ctx不是类的指针,所以他不是调用delete
来消费ctx指针,而是调用fclose这个函数来消费这个ctx指针*/
FilePtr ctx(fp, ::fclose);
conn->setContext(ctx);
char buf[kBufSize];
size_t nread = ::fread(buf, 1, sizeof buf, fp);
conn->send(buf, nread);
}
else
{
conn->shutdown();
LOG_INFO << "FileServer - no such file";
}
}
}
void onWriteComplete(const TcpConnectionPtr& conn)
{
const FilePtr& fp = boost::any_cast<const FilePtr&>(conn->getContext());
char buf[kBufSize];
size_t nread = ::fread(buf, 1, sizeof buf, get_pointer(fp));
if (nread > 0)
{
conn->send(buf, nread);
}
else
{
conn->shutdown();
LOG_INFO << "FileServer - done";
}
}
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid();
if (argc > 1)
{
g_file = argv[1];
EventLoop loop;
InetAddress listenAddr(2021);
TcpServer server(&loop, listenAddr, "FileServer");
server.setConnectionCallback(onConnection);
server.setWriteCompleteCallback(onWriteComplete);
server.start();
loop.loop();
}
else
{
fprintf(stderr, "Usage: %s file_for_downloading\n", argv[0]);
}
}
[44-45] muduo实现简单了聊天功能
聊天服务器(MuduoManual.pdf P66)
- examples/asio/chat/server.cc 单线程
- examples/asio/chat/server_threaded.cc,多线程TcpServer,并用mutex来保护共享数据
- examples/asio/chat/server_threaded_efficient.cc,借shared_ptr实现copy-on-write的手法来降低锁竞争
- examples/asio/chat/server_threaded_highperformance.cc,采用thread local变量实现多线程高效转发
消息分为包头与包体,每条消息有一个4字节的头部,以网络序存放字符串的长度。包体是一个字符串,字符串也不一定以’\0’结尾。比方说有两条消息”hello”和”chenshuo”,那么打包后的字节流是: 0x00,0x00,0x00,0x05, 'h','e','l','l','o',0x00,0x00,0x00,0x08,'c','h', 'e','n','s','h','u','o'
共21字节。
shared_ptr
指针
借shared_ptr
实现copy on write
shared_ptr
是引用计数智能指针,如果当前只有一个观察者,那么引用计数为1
,可以用shared_ptr::unique()
来判断 对于write
端,如果发现引用计数为1
,这时可以安全地修改对象,不必担心有人在读它。 对于read
端,在读之前把引用计数加1
,读完之后减1
,这样可以保证在读的期间其引用计数大于1
,可以阻止并发写。 比较难的是,对于write
端,如果发现引用计数大于1
,该如何处理?既然要更新数据,肯定要加锁,如果这时候其他线程正在读,那么不能在原来的数据上修改,得创建一个副本,在副本上修改,修改完了再替换。如果没有用户在读,那么可以直接修改。
code.h
#ifndef MUDUO_EXAMPLES_ASIO_CHAT_CODEC_H
#define MUDUO_EXAMPLES_ASIO_CHAT_CODEC_H
#include <muduo/base/Logging.h>
#include <muduo/net/Buffer.h>
#include <muduo/net/Endian.h>
#include <muduo/net/TcpConnection.h>
#include <boost/function.hpp>
#include <boost/noncopyable.hpp>
class LengthHeaderCodec : boost::noncopyable
{
public:
typedef boost::function<void (const muduo::net::TcpConnectionPtr&,
const muduo::string& message,
muduo::Timestamp)> StringMessageCallback;
explicit LengthHeaderCodec(const StringMessageCallback& cb)
: messageCallback_(cb)
{
}
/*消息到达的回调函数*/
void onMessage(const muduo::net::TcpConnectionPtr& conn,
muduo::net::Buffer* buf,
muduo::Timestamp receiveTime)
{
/*这里可能有多条信息一起到达*/
while (buf->readableBytes() >= kHeaderLen) // kHeaderLen == 4
{
// FIXME: use Buffer::peekInt32()
/*这里的消息包括消息头(包头)和消息尾(包体)*/
const void* data = buf->peek(); //这里只是查看一下数据而已,并没有取出数据
/*读出的是对方发过来的网络字节序(大端)的前4个字节(header)*/
int32_t be32 = *static_cast<const int32_t*>(data); // SIGBUS
/*把网络字节转为主机字节序*/
const int32_t len = muduo::net::sockets::networkToHost32(be32);
/*这里假设消息的包体长度不超过64k */
if (len > 65536 || len < 0) //消息不合法
{
LOG_ERROR << "Invalid length " << len;
conn->shutdown(); // FIXME: disable reading
break;
}
else if (buf->readableBytes() >= len + kHeaderLen)
{
buf->retrieve(kHeaderLen);
/*这里还没有取出消息的包体,只是peek一下*/
muduo::string message(buf->peek(), len);
/*回调应用程序,让应用层来处理包体*/
messageCallback_(conn, message, receiveTime);
/*取出包体*/
buf->retrieve(len);
}
/*未达到完整的一条消息*/
else
{
break;
}
}
}
// FIXME: TcpConnectionPtr
/*编码函数*/
void send(muduo::net::TcpConnection* conn,
const muduo::StringPiece& message)
{
muduo::net::Buffer buf;
buf.append(message.data(), message.size());
int32_t len = static_cast<int32_t>(message.size());
int32_t be32 = muduo::net::sockets::hostToNetwork32(len);
buf.prepend(&be32, sizeof be32);
/*编完码后,发送出去*/
conn->send(&buf);
}
private:
StringMessageCallback messageCallback_;
const static size_t kHeaderLen = sizeof(int32_t);
};
examples/asio/chat/server.cc 单线程
#include "codec.h"
#include <muduo/base/Logging.h>
#include <muduo/base/Mutex.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/TcpServer.h>
#include <boost/bind.hpp>
#include <set>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
/*
Program :这是一个单线程的程序,不需要mutex
*/
class ChatServer : boost::noncopyable
{
public:
ChatServer(EventLoop* loop,
const InetAddress& listenAddr)
: loop_(loop),
server_(loop, listenAddr, "ChatServer"),
/*消息编解码初始化,邋onString錗essage()为编解码完后的回调函数*/
codec_(boost::bind(&ChatServer::onStringMessage, this, _1, _2, _3))
{
server_.setConnectionCallback(
boost::bind(&ChatServer::onConnection, this, _1));
/*消息达到时的回调函数*/
server_.setMessageCallback(
boost::bind(&LengthHeaderCodec::onMessage, &codec_, _1, _2, _3));
}
void start()
{
server_.start();
}
private:
/*只有一个IO线程,因而这里的connection_不需要mutex保护*/
/*连接到达对等方对开连接时的回调函数*/
void onConnection(const TcpConnectionPtr& conn)
{
LOG_INFO << conn->localAddress().toIpPort() << " -> "
<< conn->peerAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
/*如果已经连接了,回调*/
if (conn->connected())
{
connections_.insert(conn);
}
/*连接断开*/
else
{
connections_.erase(conn);
}
}
/*编解码class 的回调函数*/
/*转发消息给所有客户端*/
void onStringMessage(const TcpConnectionPtr&,
const string& message,
Timestamp)
{
/*只有一个IO线程,因而这里的connections_不需要mutex保护;
转发信息给所有客户端
*/
for (ConnectionList::iterator it = connections_.begin();
it != connections_.end();
++it)
{
codec_.send(get_pointer(*it), message);
}
}
typedef std::set<TcpConnectionPtr> ConnectionList;
EventLoop* loop_;
TcpServer server_;
/*消息编解码class*/
LengthHeaderCodec codec_;
/*连接列表*/
ConnectionList connections_;
};
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid();
if (argc > 1)
{
EventLoop loop;
uint16_t port = static_cast<uint16_t>(atoi(argv[1]));
InetAddress serverAddr(port);
ChatServer server(&loop, serverAddr);
server.start();
loop.loop();
}
else
{
printf("Usage: %s port\n", argv[0]);
}
}
examples/asio/chat/server_threaded.cc,多线程TcpServer,并用mutex来保护共享数据
#include "codec.h"
#include <muduo/base/Logging.h>
#include <muduo/base/Mutex.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/TcpServer.h>
#include <boost/bind.hpp>
#include <set>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
/*这是一个典型的多线程聊天程序,multipleReactor 模型*/
class ChatServer : boost::noncopyable
{
public:
ChatServer(EventLoop* loop,
const InetAddress& listenAddr)
: loop_(loop),
server_(loop, listenAddr, "ChatServer"),
codec_(boost::bind(&ChatServer::onStringMessage, this, _1, _2, _3))
{
server_.setConnectionCallback(
boost::bind(&ChatServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&LengthHeaderCodec::onMessage, &codec_, _1, _2, _3));
}
void setThreadNum(int numThreads)
{
server_.setThreadNum(numThreads);
}
void start()
{
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
LOG_INFO << conn->localAddress().toIpPort() << " -> "
<< conn->peerAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
MutexLockGuard lock(mutex_);
if (conn->connected())
{
connections_.insert(conn);
}
else
{
connections_.erase(conn);
}
}
void onStringMessage(const TcpConnectionPtr&,
const string& message,
Timestamp)
{
/*多线程需要保护连接列表*/
MutexLockGuard lock(mutex_);
for (ConnectionList::iterator it = connections_.begin();
it != connections_.end();
++it)
{
codec_.send(get_pointer(*it), message);
}
}
typedef std::set<TcpConnectionPtr> ConnectionList;
EventLoop* loop_;
TcpServer server_;
LengthHeaderCodec codec_;
MutexLock mutex_;
ConnectionList connections_;
};
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid();
if (argc > 1)
{
EventLoop loop;
uint16_t port = static_cast<uint16_t>(atoi(argv[1]));
InetAddress serverAddr(port);
ChatServer server(&loop, serverAddr);
if (argc > 2)
{
server.setThreadNum(atoi(argv[2]));
}
server.start();
loop.loop();
}
else
{
printf("Usage: %s port [thread_num]\n", argv[0]);
}
}
examples/asio/chat/server_threaded_efficient.cc,借shared_ptr实现copy-on-write的手法来降低锁竞争
#include "codec.h"
#include <muduo/base/Logging.h>
#include <muduo/base/Mutex.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/TcpServer.h>
#include <boost/bind.hpp>
#include <boost/shared_ptr.hpp>
#include <set>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
/*这是一个典型的多线程聊天程序multipleReactor 模型,
但是这里使用了一些编程技巧,达到一些优化*/
class ChatServer : boost::noncopyable
{
public:
ChatServer(EventLoop* loop,
const InetAddress& listenAddr)
: loop_(loop),
server_(loop, listenAddr, "ChatServer"),//loop : acceptor loop
codec_(boost::bind(&ChatServer::onStringMessage, this, _1, _2, _3)),
connections_(new ConnectionList)//初始化时,share_ptr的引用为1
{
server_.setConnectionCallback(
boost::bind(&ChatServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&LengthHeaderCodec::onMessage, &codec_, _1, _2, _3));
}
void setThreadNum(int numThreads)
{
server_.setThreadNum(numThreads);
}
void start()
{
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
LOG_INFO << conn->localAddress().toIpPort() << " -> "
<< conn->peerAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
MutexLockGuard lock(mutex_);
if (!connections_.unique())//说明引用计数大于1
{//new ConnectionList(*connections_) 这段代码拷贝了一份ConnectionList
//connections_原来的引用计数减1,而connections_现在的引用计数
// 等于1
connections_.reset(new ConnectionList(*connections_));
}
//所以这里断言才会成功
assert(connections_.unique());
/*在复本上修改,不会影响读者,所以读者在遍历列表的时候,
不需要mutex保护*/
if (conn->connected())
{
connections_->insert(conn);
}
else
{
connections_->erase(conn);
}
}
typedef std::set<TcpConnectionPtr> ConnectionList;
typedef boost::shared_ptr<ConnectionList> ConnectionListPtr;
/*读操作*/
void onStringMessage(const TcpConnectionPtr&,
const string& message,
Timestamp)
{
/*引用计数加1,mutex保护的临时区大大缩短*/
ConnectionListPtr connections = getConnectionList();;//栈上变量
/*可能大家会有疑问,不受mutex保护,写者更改了连接列表怎么办�*
实际上,写者是在另一个副本上修改,所以无需担心*/
for (ConnectionList::iterator it = connections->begin();
it != connections->end();
++it)
{
/*这里也是无法减少第一个和第二个连接发送所需的时间,
因为他们都是在同步发送的,就是所要等到转发完一条消息到
一个connection后,然后才能转发下一个连接connection.
实质就是调用这个函数的IO负责转发*/
codec_.send(get_pointer(*it), message);
}
/*这个断言不一定成立
assert(!connections.uniquer())。
这是由于Onconnection()---->connections_.reset(new ConnectionList(*connections_));*/
/*当connection这个栈上的变量销毁的时候,引用计数减1*/
}
ConnectionListPtr getConnectionList()
{
/*保护区域变小了<>*/
MutexLockGuard lock(mutex_);
return connections_;
}
EventLoop* loop_;
TcpServer server_; /*tcpserver服务器*/
LengthHeaderCodec codec_;
MutexLock mutex_;
ConnectionListPtr connections_;
};
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid();
if (argc > 1)
{
EventLoop loop;
uint16_t port = static_cast<uint16_t>(atoi(argv[1]));
InetAddress serverAddr(port);
ChatServer server(&loop, serverAddr);
if (argc > 2)
{
/*IO线程个数*/
server.setThreadNum(atoi(argv[2]));
}
server.start();
loop.loop();
}
else
{
printf("Usage: %s port [thread_num]\n", argv[0]);
}
}
examples/asio/chat/server_threaded_highperformance.cc,采用thread local变量实现多线程高效转发
#include "codec.h"
#include <muduo/base/Logging.h>
#include <muduo/base/Mutex.h>
#include <muduo/base/ThreadLocalSingleton.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/TcpServer.h>
#include <boost/bind.hpp>
#include <boost/shared_ptr.hpp>
#include <set>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
/*这个主要是针对第二个进行改正的,*/
class ChatServer : boost::noncopyable
{
public:
ChatServer(EventLoop* loop,
const InetAddress& listenAddr)
: loop_(loop),
server_(loop, listenAddr, "ChatServer"),
codec_(boost::bind(&ChatServer::onStringMessage, this, _1, _2, _3))
{
server_.setConnectionCallback(
boost::bind(&ChatServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&LengthHeaderCodec::onMessage, &codec_, _1, _2, _3));
}
void setThreadNum(int numThreads)
{
/*设置sub IO线程池的大小*/
server_.setThreadNum(numThreads);
}
void start()
{/*设置线程的初始化函数*/
server_.setThreadInitCallback(boost::bind(&ChatServer::threadInit, this, _1));
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
LOG_INFO << conn->localAddress().toIpPort() << " -> "
<< conn->peerAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
if (conn->connected())
{
connections_.instance().insert(conn);
}
else
{
connections_.instance().erase(conn);
}
cout<<"connection adress :"<<&connections_<<"\t"<<"connection size :"<<connections_.size() ;
}
void onStringMessage(const TcpConnectionPtr&,
const string& message,
Timestamp)
{
/*把消息"转发"作为IO线程的任务来处理*/
EventLoop::Functor f = boost::bind(&ChatServer::distributeMessage, this, message);
LOG_DEBUG;
/*转发消息给所有客户端,高效率(多线程来转发),转发到不同的IO线程,
*/
MutexLockGuard lock(mutex_);
/*for 循环和f达到异步进行*/
for (std::set<EventLoop*>::iterator it = loops_.begin();
it != loops_.end();
++it)
{/*
1.让对应的IO线程来执行distributeMessage
2.distributeMessage放到IO线程队列中执行,因此,这里的mutex_锁竞争大大减小
3.distributeMesssge 不受mutex_保护
*/
(*it)->queueInLoop(f);
}
LOG_DEBUG;
}
typedef std::set<TcpConnectionPtr> ConnectionList;
void distributeMessage(const string& message)
{
LOG_DEBUG << "begin";
// connectionList_是线程局部变量
for (ConnectionList::iterator it = connections_.instance().begin();
it != connections_.instance().end();
++it)
{
codec_.send(get_pointer(*it), message);
}
LOG_DEBUG << "end";
}
/*IO线程执行前时的前回调函数*/
void threadInit(EventLoop* loop)
{
assert(connections_.pointer() == NULL);
/*实例化一个对象*/
connections_.instance();
assert(connections_.pointer() != NULL);
MutexLockGuard lock(mutex_);
loops_.insert(loop);
}
EventLoop* loop_; //loop_传递给server_
TcpServer server_;
LengthHeaderCodec codec_;
/*线程局部单例变量,每个线程都有一个connections_(连接列表)实例*/
ThreadLocalSingleton<ConnectionList> connections_;
MutexLock mutex_;
std::set<EventLoop*> loops_; //eventLoop列表
};
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid();
if (argc > 1)
{
EventLoop loop;//acceptor loop
uint16_t port = static_cast<uint16_t>(atoi(argv[1]));
InetAddress serverAddr(port);
ChatServer server(&loop, serverAddr);
if (argc > 2)
{
server.setThreadNum(atoi(argv[2])); //多个subIO线程
}
server.start();
loop.loop();
}
else
{
printf("Usage: %s port [thread_num]\n", argv[0]);
}
}
[47] 限制服务器最大并发连接数
限制服务器最大并发连接数(MuduoManual.pdf P108
)
用Timing wheel
踢掉空闲连接(MuduoManual.pdf P122
)
Timing wheel
echo.h
#ifndef MUDUO_EXAMPLES_IDLECONNECTION_ECHO_H
#define MUDUO_EXAMPLES_IDLECONNECTION_ECHO_H
#include <muduo/net/TcpServer.h>
//#include <muduo/base/Types.h>
#include <boost/circular_buffer.hpp>
#include <boost/unordered_set.hpp>
#include <boost/version.hpp>
#if BOOST_VERSION < 104700
namespace boost
{
template <typename T>
inline size_t hash_value(const boost::shared_ptr<T>& x)
{
return boost::hash_value(x.get());
}
}
#endif
// RFC 862
class EchoServer
{
public:
EchoServer(muduo::net::EventLoop* loop,
const muduo::net::InetAddress& listenAddr,
int idleSeconds);
void start();
private:
void onConnection(const muduo::net::TcpConnectionPtr& conn);
void onMessage(const muduo::net::TcpConnectionPtr& conn,
muduo::net::Buffer* buf,
muduo::Timestamp time);
void onTimer();
void dumpConnectionBuckets() const;
typedef boost::weak_ptr<muduo::net::TcpConnection> WeakTcpConnectionPtr;
struct Entry : public muduo::copyable
{
explicit Entry(const WeakTcpConnectionPtr& weakConn)
: weakConn_(weakConn) //这是一个弱指针,所以创建一个对象时,引用计数不会加一
{
}
~Entry()
{/*当引用计数为0时,会调用虚构函数;
将弱指针提升为强指针,然后关闭连接
*/
muduo::net::TcpConnectionPtr conn = weakConn_.lock();
if (conn)
{
conn->shutdown();
}
}
WeakTcpConnectionPtr weakConn_;
};
typedef boost::shared_ptr<Entry> EntryPtr; //共享型Entry指针
typedef boost::weak_ptr<Entry> WeakEntryPtr;//弱指针Entry型
typedef boost::unordered_set<EntryPtr> Bucket;//共享型Entry集合
typedef boost::circular_buffer<Bucket> WeakConnectionList;
muduo::net::EventLoop* loop_;
muduo::net::TcpServer server_;
WeakConnectionList connectionBuckets_;
};
#endif // MUDUO_EXAMPLES_IDLECONNECTION_ECHO_H
echo.cc
#include "echo.h"
#include <muduo/base/Logging.h>
#include <muduo/net/EventLoop.h>
#include <boost/bind.hpp>
#include <assert.h>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
EchoServer::EchoServer(EventLoop* loop,
const InetAddress& listenAddr,
int idleSeconds)
: loop_(loop),
server_(loop, listenAddr, "EchoServer"),
connectionBuckets_(idleSeconds)
{
server_.setConnectionCallback(
boost::bind(&EchoServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&EchoServer::onMessage, this, _1, _2, _3));
loop->runEvery(1.0, boost::bind(&EchoServer::onTimer, this));
connectionBuckets_.resize(idleSeconds);
dumpConnectionBuckets();
}
void EchoServer::start()
{
server_.start();
}
/*连接到来时的回调函数*/
void EchoServer::onConnection(const TcpConnectionPtr& conn)
{
LOG_INFO << "EchoServer - " << conn->peerAddress().toIpPort() << " -> "
<< conn->localAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
if (conn->connected())
{
/*将连接和entryptr绑定
引用计数为1,这是一个临时对象*/
EntryPtr entry(new Entry(conn));
/*插入到队尾,这时候引用计数位2*/
connectionBuckets_.back().insert(entry);
/*打出桶的连接数*/
dumpConnectionBuckets();
WeakEntryPtr weakEntry(entry);
/*设置一下上下文,不使用强引用,防止引用计数加1
这也是为了在OnMessage()函数调用时可以使用
*/
conn->setContext(weakEntry);
}//临时对象无效,引用计数减1
else
{
assert(!conn->getContext().empty());
/*输出一下引用计数*/
WeakEntryPtr weakEntry(boost::any_cast<WeakEntryPtr>(conn->getContext()));
LOG_DEBUG << "Entry use_count = " << weakEntry.use_count();
}
}
/*消息到达时的回调函数*/
void EchoServer::onMessage(const TcpConnectionPtr& conn,
Buffer* buf,
Timestamp time)
{
string msg(buf->retrieveAllAsString());
LOG_INFO << conn->name() << " echo " << msg.size()
<< " bytes at " << time.toString();
conn->send(msg);
assert(!conn->getContext().empty());
WeakEntryPtr weakEntry(boost::any_cast<WeakEntryPtr>(conn->getContext()));
EntryPtr entry(weakEntry.lock());//+1
if (entry)
{
/*在tail后面插入一个entry*/
connectionBuckets_.back().insert(entry);//+1
dumpConnectionBuckets();
}//-1
}
/*时钟达到*/
void EchoServer::onTimer()
{
/*清空该位置上的集合,集合里面的指针引用计数都减1*/
connectionBuckets_.push_back(Bucket());
dumpConnectionBuckets();
}
/*打出桶的连接数*/
void EchoServer::dumpConnectionBuckets() const
{
LOG_INFO << "size = " << connectionBuckets_.size();
int idx = 0;
/*弱引用*/
for (WeakConnectionList::const_iterator bucketI = connectionBuckets_.begin();
bucketI != connectionBuckets_.end();
++bucketI, ++idx)
{
const Bucket& bucket = *bucketI;
printf("[%d] len = %zd : ", idx, bucket.size());
for (Bucket::const_iterator it = bucket.begin();
it != bucket.end();
++it)
{
bool connectionDead = (*it)->weakConn_.expired();
printf("%p(%ld)%s, ", get_pointer(*it), it->use_count(),
connectionDead ? " DEAD" : "");
}
puts("");
}
}
sortedlist.h
#include <muduo/base/Logging.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/TcpServer.h>
#include <boost/bind.hpp>
#include <list>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
// RFC 862
class EchoServer
{
public:
EchoServer(EventLoop* loop,
const InetAddress& listenAddr,
int idleSeconds);
void start()
{
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn);
void onMessage(const TcpConnectionPtr& conn,
Buffer* buf,
Timestamp time);
void onTimer();
void dumpConnectionList() const;
typedef boost::weak_ptr<TcpConnection> WeakTcpConnectionPtr;//弱连接指针
typedef std::list<WeakTcpConnectionPtr> WeakConnectionList;//连接列表(元素是指针)
struct Node : public muduo::copyable
{
Timestamp lastReceiveTime; //该连接最后一次活跃时刻
WeakConnectionList::iterator position; //该连接在连接列表中的位置
};
EventLoop* loop_;
TcpServer server_;
int idleSeconds_;
WeakConnectionList connectionList_;//连接列表
};
EchoServer::EchoServer(EventLoop* loop,
const InetAddress& listenAddr,
int idleSeconds)
: loop_(loop),
server_(loop, listenAddr, "EchoServer"),
idleSeconds_(idleSeconds)
{
server_.setConnectionCallback(
boost::bind(&EchoServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&EchoServer::onMessage, this, _1, _2, _3));
loop->runEvery(1.0, boost::bind(&EchoServer::onTimer, this));
dumpConnectionList();
}
void EchoServer::onConnection(const TcpConnectionPtr& conn)
{
LOG_INFO << "EchoServer - " << conn->peerAddress().toIpPort() << " -> "
<< conn->localAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
if (conn->connected())
{
Node node;
node.lastReceiveTime = Timestamp::now();
connectionList_.push_back(conn);
node.position = --connectionList_.end();
conn->setContext(node);
}
else
{
assert(!conn->getContext().empty());
const Node& node = boost::any_cast<const Node&>(conn->getContext());
connectionList_.erase(node.position);
}
dumpConnectionList();
}
void EchoServer::onMessage(const TcpConnectionPtr& conn,
Buffer* buf,
Timestamp time)
{
string msg(buf->retrieveAllAsString());
LOG_INFO << conn->name() << " echo " << msg.size()
<< " bytes at " << time.toString();
conn->send(msg);
assert(!conn->getContext().empty());
Node* node = boost::any_cast<Node>(conn->getMutableContext());
node->lastReceiveTime = time;
// move node inside list with list::splice()
connectionList_.erase(node->position);
connectionList_.push_back(conn);
node->position = --connectionList_.end();
dumpConnectionList();
}
/*时钟回调函数*/
void EchoServer::onTimer()
{
dumpConnectionList();
Timestamp now = Timestamp::now();
for (WeakConnectionList::iterator it = connectionList_.begin();
it != connectionList_.end();)
{
TcpConnectionPtr conn = it->lock();
if (conn)
{
Node* n = boost::any_cast<Node>(conn->getMutableContext());
double age = timeDifference(now, n->lastReceiveTime);
if (age > idleSeconds_)
{/*剔除超时的连接*/
conn->shutdown();
}
else if (age < 0)
{
LOG_WARN << "Time jump";
n->lastReceiveTime = now;
}
else
{
break;
}
++it;
}
else
{
LOG_WARN << "Expired";
it = connectionList_.erase(it);
}
}
}
void EchoServer::dumpConnectionList() const
{
LOG_INFO << "size = " << connectionList_.size();
for (WeakConnectionList::const_iterator it = connectionList_.begin();
it != connectionList_.end(); ++it)
{
TcpConnectionPtr conn = it->lock();
if (conn)
{
printf("conn %p\n", get_pointer(conn));
const Node& n = boost::any_cast<const Node&>(conn->getContext());
printf(" time %s\n", n.lastReceiveTime.toString().c_str());
}
else
{
printf("expired\n");
}
}
}
int main(int argc, char* argv[])
{
EventLoop loop;
InetAddress listenAddr(2007);
int idleSeconds = 10;
if (argc > 1)
{
idleSeconds = atoi(argv[1]);
}
LOG_INFO << "pid = " << getpid() << ", idle seconds = " << idleSeconds;
EchoServer server(&loop, listenAddr, idleSeconds);
server.start();
loop.loop();
}
#include "echo.h"
#include <stdio.h>
#include <muduo/base/Logging.h>
#include <muduo/net/EventLoop.h>
using namespace muduo;
using namespace muduo::net;
void testHash()
{
boost::hash<boost::shared_ptr<int> > h;
boost::shared_ptr<int> x1(new int(10));
boost::shared_ptr<int> x2(new int(10));
h(x1);
assert(h(x1) != h(x2));
x1 = x2;
assert(h(x1) == h(x2));
x1.reset();
assert(h(x1) != h(x2));
x2.reset();
assert(h(x1) == h(x2));
}
int main(int argc, char* argv[])
{
testHash();
EventLoop loop;
InetAddress listenAddr(2007);
int idleSeconds = 10;
if (argc > 1)
{
idleSeconds = atoi(argv[1]);
}
LOG_INFO << "pid = " << getpid() << ", idle seconds = " << idleSeconds;
EchoServer server(&loop, listenAddr, idleSeconds);
server.start();
loop.loop();
}
