[34] TcpServer/TcpConnection
Acceptor类的主要功能是socket、bind、listen
般来说,在上层应用程序中,我们不直接使用Acceptor,而是把它作为TcpServer的成员
TcpServer还包含了一个TcpConnection列表
TcpConnection与Acceptor类似,有两个重要的数据成员,Socket与Channel

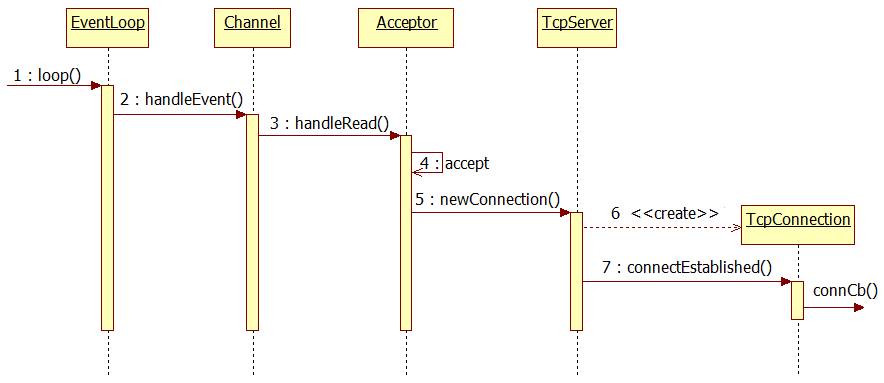

时序图
TcpServer头文件
TcpServer.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
#ifndef MUDUO_NET_TCPSERVER_H
#define MUDUO_NET_TCPSERVER_H
#include <muduo/base/Types.h>
#include <muduo/net/TcpConnection.h>
#include <map>
#include <boost/noncopyable.hpp>
#include <boost/scoped_ptr.hpp>
namespace muduo
{
namespace net
{
class Acceptor;
class EventLoop;
///
/// TCP server, supports single-threaded and thread-pool models.
///
/// This is an interface class, so don't expose too much details.
class TcpServer : boost::noncopyable
{
public:
//typedef boost::function<void(EventLoop*)> ThreadInitCallback;
//TcpServer(EventLoop* loop, const InetAddress& listenAddr);
TcpServer(EventLoop* loop,
const InetAddress& listenAddr,
const string& nameArg);
~TcpServer(); // force out-line dtor, for scoped_ptr members.
/*返回服务器的名称*/
const string& hostport() const { return hostport_; }
/*返回服务器的监听端口*/
const string& name() const { return name_; }
/// Starts the server if it's not listenning.
///
/// It's harmless to call it multiple times.
/// Thread safe.
void start();
/// Set connection callback.
/// Not thread safe.
// 设置连接到来或者连接关闭回调函数
void setConnectionCallback(const ConnectionCallback& cb)
{ connectionCallback_ = cb; }
/// Set message callback.
/// Not thread safe.
// 设置消息到来回调函数
void setMessageCallback(const MessageCallback& cb)
{ messageCallback_ = cb; }
private:
/// Not thread safe, but in loop
// Acceptor::handleRead函数中会回调用TcpServer::newConnection
// _1对应的是socket文件描述符,_2对应的是对等方的地址(InetAddress)
//应该还在IO线程里面
// newConnection和connectionCallback_都是连接回调函数,但是connectionCallback_
// 是给应用程序使用的,newConnection是库函数,不会暴露给用户。
// 其实就是newConnection函数主要负责注册connectionCallback_ 函数
void newConnection(int sockfd, const InetAddress& peerAddr);
typedef std::map<string, TcpConnectionPtr> ConnectionMap;
EventLoop* loop_; // the acceptor's loop,不一定是连接所属的eventloop
const string hostport_; // 服务端口
const string name_; // 服务名
boost::scoped_ptr<Acceptor> acceptor_; // avoid revealing Acceptor
/*连接到来的回调函数*/
ConnectionCallback connectionCallback_;
/*消息到来的回调函数*/
MessageCallback messageCallback_;
bool started_; /*连接是否启动*/
// always in loop thread
int nextConnId_; // 下一个连接ID
ConnectionMap connections_; // 连接列表
};
}
}
#endif // MUDUO_NET_TCPSERVER_H
TcpServer源文件
TcpServer.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
#include <muduo/net/TcpServer.h>
#include <muduo/base/Logging.h>
#include <muduo/net/Acceptor.h>
#include <muduo/net/EventLoop.h>
//#include <muduo/net/EventLoopThreadPool.h>
#include <muduo/net/SocketsOps.h>
#include <boost/bind.hpp>
#include <stdio.h> // snprintf
using namespace muduo;
using namespace muduo::net;
TcpServer::TcpServer(EventLoop* loop,
const InetAddress& listenAddr,
const string& nameArg)
: loop_(CHECK_NOTNULL(loop)),
hostport_(listenAddr.toIpPort()),
name_(nameArg),
acceptor_(new Acceptor(loop, listenAddr)),
/*threadPool_(new EventLoopThreadPool(loop)),
connectionCallback_(defaultConnectionCallback),
messageCallback_(defaultMessageCallback),*/
started_(false),
nextConnId_(1)
{
// Acceptor::handleRead函数中会回调用TcpServer::newConnection
// _1对应的是socket文件描述符,_2对应的是对等方的地址(InetAddress)
acceptor_->setNewConnectionCallback(
boost::bind(&TcpServer::newConnection, this, _1, _2));
}
TcpServer::~TcpServer()
{
loop_->assertInLoopThread();
LOG_TRACE << "TcpServer::~TcpServer [" << name_ << "] destructing";
}
// 该函数多次调用是无害的
// 该函数可以跨线程调用
void TcpServer::start()
{
if (!started_)
{
started_ = true;
}
/*如果还没有被执行,那么让他在IO线程中执行listen函数*/
if (!acceptor_->listenning())
{
// get_pointer返回原生指针
loop_->runInLoop(
boost::bind(&Acceptor::listen, get_pointer(acceptor_)));
}
}
void TcpServer::newConnection(int sockfd, const InetAddress& peerAddr)
{
loop_->assertInLoopThread();
char buf[32];
snprintf(buf, sizeof buf, ":%s#%d", hostport_.c_str(), nextConnId_);
++nextConnId_;
string connName = name_ + buf;
LOG_INFO << "TcpServer::newConnection [" << name_
<< "] - new connection [" << connName
<< "] from " << peerAddr.toIpPort();
InetAddress localAddr(sockets::getLocalAddr(sockfd));
// FIXME poll with zero timeout to double confirm the new connection
// FIXME use make_shared if necessary
/*构建一个连接对象*/
TcpConnectionPtr conn(new TcpConnection(loop_,
connName,
sockfd,
localAddr,
peerAddr));
connections_[connName] = conn;
conn->setConnectionCallback(connectionCallback_);
conn->setMessageCallback(messageCallback_);
conn->connectEstablished();
}
TcpConnection头文件
TcpConnection.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
#ifndef MUDUO_NET_TCPCONNECTION_H
#define MUDUO_NET_TCPCONNECTION_H
#include <muduo/base/Mutex.h>
#include <muduo/base/StringPiece.h>
#include <muduo/base/Types.h>
#include <muduo/net/Callbacks.h>
//#include <muduo/net/Buffer.h>
#include <muduo/net/InetAddress.h>
//#include <boost/any.hpp>
#include <boost/enable_shared_from_this.hpp>
#include <boost/noncopyable.hpp>
#include <boost/scoped_ptr.hpp>
#include <boost/shared_ptr.hpp>
namespace muduo
{
namespace net
{
class Channel;
class EventLoop;
class Socket;
///
/// TCP connection, for both client and server usage.
///
/// This is an interface class, so don't expose too much details.
class TcpConnection : boost::noncopyable,
public boost::enable_shared_from_this<TcpConnection>
{
public:
/// Constructs a TcpConnection with a connected sockfd
///
/// User should not create this object.
TcpConnection(EventLoop* loop,
const string& name,
int sockfd,
const InetAddress& localAddr,
const InetAddress& peerAddr);
~TcpConnection();
EventLoop* getLoop() const { return loop_; }
const string& name() const { return name_; }
const InetAddress& localAddress() { return localAddr_; }
const InetAddress& peerAddress() { return peerAddr_; }
bool connected() const { return state_ == kConnected; }
void setConnectionCallback(const ConnectionCallback& cb)
{ connectionCallback_ = cb; }
void setMessageCallback(const MessageCallback& cb)
{ messageCallback_ = cb; }
// called when TcpServer accepts a new connection
void connectEstablished(); // should be called only once
private:
enum StateE { /*kDisconnected, */kConnecting, kConnected/*, kDisconnecting*/ };
void handleRead(Timestamp receiveTime);
void setState(StateE s) { state_ = s; }
EventLoop* loop_; // 所属EventLoop
string name_; // 连接名
/*连接状态*/
StateE state_; // FIXME: use atomic variable
// we don't expose those classes to client.
boost::scoped_ptr<Socket> socket_;
boost::scoped_ptr<Channel> channel_;
InetAddress localAddr_;
InetAddress peerAddr_;
/*连接套接字的回调函数*/
ConnectionCallback connectionCallback_;
/*消息被读到应用层后的回调函数*/
MessageCallback messageCallback_;
};
typedef boost::shared_ptr<TcpConnection> TcpConnectionPtr;
}
}
#endif // MUDUO_NET_TCPCONNECTION_H
TcpConnection源文件
TcpConnection.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
#include <muduo/net/TcpConnection.h>
#include <muduo/base/Logging.h>
#include <muduo/net/Channel.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/Socket.h>
#include <muduo/net/SocketsOps.h>
#include <boost/bind.hpp>
#include <errno.h>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
/*
void muduo::net::defaultConnectionCallback(const TcpConnectionPtr& conn)
{
LOG_TRACE << conn->localAddress().toIpPort() << " -> "
<< conn->peerAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
}
void muduo::net::defaultMessageCallback(const TcpConnectionPtr&,
Buffer* buf,
Timestamp)
{
buf->retrieveAll();
}
*/
TcpConnection::TcpConnection(EventLoop* loop,
const string& nameArg,
int sockfd,
const InetAddress& localAddr,
const InetAddress& peerAddr)
: loop_(CHECK_NOTNULL(loop)),
name_(nameArg),
state_(kConnecting),
socket_(new Socket(sockfd)),
channel_(new Channel(loop, sockfd)),
localAddr_(localAddr),
peerAddr_(peerAddr)/*,
highWaterMark_(64*1024*1024)*/
{
// 通道可读事件到来的时候,回调TcpConnection::handleRead,_1是事件发生时间
channel_->setReadCallback(
boost::bind(&TcpConnection::handleRead, this, _1));
LOG_DEBUG << "TcpConnection::ctor[" << name_ << "] at " << this
<< " fd=" << sockfd;
socket_->setKeepAlive(true);
}
TcpConnection::~TcpConnection()
{
LOG_DEBUG << "TcpConnection::dtor[" << name_ << "] at " << this
<< " fd=" << channel_->fd();
}
void TcpConnection::connectEstablished()
{
//断言在eventloop IO线程中
loop_->assertInLoopThread();
//断言还没有连接
assert(state_ == kConnecting);
setState(kConnected);
channel_->tie(shared_from_this());
/*如果连接成功,则关注可读事件*/
channel_->enableReading(); // TcpConnection所对应的通道加入到Poller关注
connectionCallback_(shared_from_this());
}
void TcpConnection::handleRead(Timestamp receiveTime)
{
/*
loop_->assertInLoopThread();
int savedErrno = 0;
ssize_t n = inputBuffer_.readFd(channel_->fd(), &savedErrno);
if (n > 0)
{
messageCallback_(shared_from_this(), &inputBuffer_, receiveTime);
}
else if (n == 0)
{
handleClose();
}
else
{
errno = savedErrno;
LOG_SYSERR << "TcpConnection::handleRead";
handleError();
}
*/
loop_->assertInLoopThread();
char buf[65536];
ssize_t n = ::read(channel_->fd(), buf, sizeof buf);
messageCallback_(shared_from_this(), buf, n);
}
CallBack源文件
CallBack.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
#ifndef MUDUO_NET_CALLBACKS_H
#define MUDUO_NET_CALLBACKS_H
#include <boost/function.hpp>
#include <boost/shared_ptr.hpp>
#include <muduo/base/Timestamp.h>
namespace muduo
{
/*
// Adapted from google-protobuf stubs/common.h
// see License in muduo/base/Types.h
template<typename To, typename From>
inline ::boost::shared_ptr<To> down_pointer_cast(const ::boost::shared_ptr<From>& f) {
if (false) {
implicit_cast<From*, To*>(0);
}
#ifndef NDEBUG
assert(f == NULL || dynamic_cast<To*>(get_pointer(f)) != NULL);
#endif
return ::boost::static_pointer_cast<To>(f);
}*/
namespace net
{
// All client visible callbacks go here.
/*
class Buffer;
*/
class TcpConnection;
typedef boost::shared_ptr<TcpConnection> TcpConnectionPtr;
typedef boost::function<void()> TimerCallback;
typedef boost::function<void (const TcpConnectionPtr&)> ConnectionCallback;
/*typedef boost::function<void (const TcpConnectionPtr&)> CloseCallback;
typedef boost::function<void (const TcpConnectionPtr&)> WriteCompleteCallback;
typedef boost::function<void (const TcpConnectionPtr&, size_t)> HighWaterMarkCallback;
// the data has been read to (buf, len)
typedef boost::function<void (const TcpConnectionPtr&,
Buffer*,
Timestamp)> MessageCallback;
void defaultConnectionCallback(const TcpConnectionPtr& conn);
void defaultMessageCallback(const TcpConnectionPtr& conn,
Buffer* buffer,
Timestamp receiveTime);
*/
typedef boost::function<void (const TcpConnectionPtr&,
const char* data,
ssize_t len)> MessageCallback;
}
}
#endif // MUDUO_NET_CALLBACKS_H
测试程序1
#include <muduo/net/TcpServer.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <stdio.h>
/*
这个程序主要用来测试TcpServer、TcpConnection
由于这里的TcpServer还没有实现关闭的事件处理,所以当对等放关闭时,服务器会一直处于高电平状态,
也就是说会一直触发
**/
using namespace muduo;
using namespace muduo::net;
void onConnection(const TcpConnectionPtr& conn)
{
if (conn->connected())
{
printf("onConnection(): new connection [%s] from %s\n",
conn->name().c_str(),
conn->peerAddress().toIpPort().c_str());
}
else
{
printf("onConnection(): connection [%s] is down\n",
conn->name().c_str());
}
}
void onMessage(const TcpConnectionPtr& conn,
const char* data,
ssize_t len)
{
printf("onMessage(): received %zd bytes from connection [%s]\n",
len, conn->name().c_str());
}
int main()
{
printf("main(): pid = %d\n", getpid());
InetAddress listenAddr(8888);
EventLoop loop;
TcpServer server(&loop, listenAddr, "TestServer");
server.setConnectionCallback(onConnection);
server.setMessageCallback(onMessage);
server.start();
loop.loop();
}
程序输出:
客户端
aaahuiahsdui crosoft Telnet Client
????????haracter is 'CTRL+]'
sadasd
asduhasuidhuiahsdiahsdjksdjfhsdiohahsoidoasudguagsdhjgashjdgajhksd
as
d
a
s
d
sad
Microsoft Telnet> quit
C:\Users\LaoHan>
服务器端
^Cubuntu@ubuntu-virtual-machine:~/pro/33/jmuduo$ ../build/debug/bin/reactor_test08
main(): pid = 6066
20131023 01:08:39.593827Z 6066 TRACE updateChannel fd = 4 events = 3 - EPollPoller.cc:104
20131023 01:08:39.594123Z 6066 TRACE EventLoop EventLoop created 0xBFBEBEDC in thread 6066 - EventLoop.cc:62
20131023 01:08:39.594172Z 6066 TRACE updateChannel fd = 5 events = 3 - EPollPoller.cc:104
20131023 01:08:39.594331Z 6066 TRACE updateChannel fd = 6 events = 3 - EPollPoller.cc:104
20131023 01:08:39.594387Z 6066 TRACE loop EventLoop 0xBFBEBEDC start looping - EventLoop.cc:94
20131023 01:08:43.065719Z 6066 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:43.066560Z 6066 TRACE printActiveChannels {6: IN } - EventLoop.cc:257
20131023 01:08:43.066665Z 6066 INFO TcpServer::newConnection [TestServer] - new connection [TestServer:0.0.0.0:8888#1] from 172.21.95.221:50007 - TcpServer.cc:74
20131023 01:08:43.066762Z 6066 DEBUG TcpConnection TcpConnection::ctor[TestServer:0.0.0.0:8888#1] at 0x9D80468 fd=8 - TcpConnection.cc:56
20131023 01:08:43.066802Z 6066 TRACE updateChannel fd = 8 events = 3 - EPollPoller.cc:104
onConnection(): new connection [TestServer:0.0.0.0:8888#1] from 172.21.95.221:50007
20131023 01:08:43.845782Z 6066 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:43.845853Z 6066 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 1 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:44.122627Z 6066 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:44.122695Z 6066 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 1 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:44.306479Z 6066 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:44.306545Z 6066 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 1 bytes from connection [TestServer:0.0.0.0:8888#1]
onMessage(): received 0 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:23.429136Z 6063 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:23.429156Z 6063 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 0 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:23.429186Z 6063 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:23.429205Z 6063 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 0 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:23.429235Z 6063 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:23.429253Z 6063 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 0 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:23.429283Z 6063 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:23.429302Z 6063 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 0 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:23.429332Z 6063 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:23.429351Z 6063 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 0 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:23.429381Z 6063 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:23.429399Z 6063 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 0 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:23.429447Z 6063 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:23.429466Z 6063 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 0 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:23.429497Z 6063 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 01:08:23.429515Z 6063 TRACE printActiveChannels {8: IN } - EventLoop.cc:257
onMessage(): received 0 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 01:08:23.429545Z 6063 TRACE poll 1 events happended - EPollPoller.cc:65
测试程序2
#include <muduo/net/TcpServer.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <boost/bind.hpp>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
class TestServer
{
public:
TestServer(EventLoop* loop,
const InetAddress& listenAddr)
: loop_(loop),
server_(loop, listenAddr, "TestServer")
{
server_.setConnectionCallback(
boost::bind(&TestServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&TestServer::onMessage, this, _1, _2, _3));
}
void start()
{
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
if (conn->connected())
{
printf("onConnection(): new connection [%s] from %s\n",
conn->name().c_str(),
conn->peerAddress().toIpPort().c_str());
}
else
{
printf("onConnection(): connection [%s] is down\n",
conn->name().c_str());
}
}
void onMessage(const TcpConnectionPtr& conn,
const char* data,
ssize_t len)
{
printf("onMessage(): received %zd bytes from connection [%s]\n",
len, conn->name().c_str());
}
EventLoop* loop_;
TcpServer server_;
};
int main()
{
printf("main(): pid = %d\n", getpid());
InetAddress listenAddr(8888);
EventLoop loop;
TestServer server(&loop, listenAddr);
server.start();
loop.loop();
}

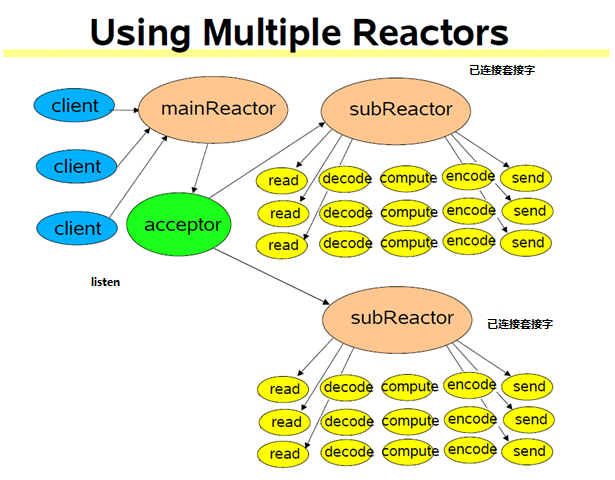

[35-1] multiple reactors
muduo
库如何支持多线程EventLoopThread
(IO
线程类)EventLoopThreadPool
(IO
线程池类)IO
线程池的功能是开启若干个IO
线程,并让这些IO
线程处于事件循环的状态
下面的这些代码可能和前面给出的源代码有些不一样,阅读的同学请注意了
EventLoopThreadPool
头文件
eventloopthreadpool.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is an internal header file, you should not include this.
#ifndef MUDUO_NET_EVENTLOOPTHREADPOOL_H
#define MUDUO_NET_EVENTLOOPTHREADPOOL_H
#include <muduo/base/Condition.h>
#include <muduo/base/Mutex.h>
#include <vector>
#include <boost/function.hpp>
#include <boost/noncopyable.hpp>
#include <boost/ptr_container/ptr_vector.hpp>
namespace muduo
{
namespace net
{
class EventLoop;
class EventLoopThread;
class EventLoopThreadPool : boost::noncopyable
{
public:
typedef boost::function<void(EventLoop*)> ThreadInitCallback;
EventLoopThreadPool(EventLoop* baseLoop);
~EventLoopThreadPool();
void setThreadNum(int numThreads) { numThreads_ = numThreads; }
void start(const ThreadInitCallback& cb = ThreadInitCallback());
EventLoop* getNextLoop();
private:
EventLoop* baseLoop_; // 与Acceptor所属EventLoop相同
bool started_; /*是否启动*/
int numThreads_; // 线程数
int next_; // 新连接到来,所选择的EventLoop对象下标
boost::ptr_vector<EventLoopThread> threads_; // IO线程列表
std::vector<EventLoop*> loops_; // EventLoop列表
};
}
}
#endif // MUDUO_NET_EVENTLOOPTHREADPOOL_H
EventLoopThreadPool源文件
eventloopthreadpool.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
#include <muduo/net/EventLoopThreadPool.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/EventLoopThread.h>
#include <boost/bind.hpp>
using namespace muduo;
using namespace muduo::net;
EventLoopThreadPool::EventLoopThreadPool(EventLoop* baseLoop)
: baseLoop_(baseLoop), // 与Acceptor所属EventLoop相同
started_(false),
numThreads_(0),
next_(0)
{
}
EventLoopThreadPool::~EventLoopThreadPool()
{
// Don't delete loop, it's stack variable
}
/*每个线程初始化时的回调函数cb*/
void EventLoopThreadPool::start(const ThreadInitCallback& cb)
{
assert(!started_);
baseLoop_->assertInLoopThread();
started_ = true;
for (int i = 0; i < numThreads_; ++i)
{
EventLoopThread* t = new EventLoopThread(cb);
threads_.push_back(t);
loops_.push_back(t->startLoop()); // 启动EventLoopThread线程,在进入事件循环之前,会调用cb
}
if (numThreads_ == 0 && cb)
{
// 只有一个EventLoop,在这个EventLoop进入事件循环之前,调用cb
cb(baseLoop_);
}
}
EventLoop* EventLoopThreadPool::getNextLoop()
{
baseLoop_->assertInLoopThread();
EventLoop* loop = baseLoop_;
// 如果loops_为空,则loop指向baseLoop_
// 如果不为空,按照round-robin(RR,轮叫)的调度方式选择一个EventLoop
if (!loops_.empty())
{
// round-robin
loop = loops_[next_];
++next_;
if (implicit_cast<size_t>(next_) >= loops_.size())
{
next_ = 0;
}
}
return loop;
}
TcpServer头文件
TcpServer.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
#ifndef MUDUO_NET_TCPSERVER_H
#define MUDUO_NET_TCPSERVER_H
#include <muduo/base/Types.h>
#include <muduo/net/TcpConnection.h>
#include <map>
#include <boost/noncopyable.hpp>
#include <boost/scoped_ptr.hpp>
namespace muduo
{
namespace net
{
class Acceptor;
class EventLoop;
class EventLoopThreadPool;
///
/// TCP server, supports single-threaded and thread-pool models.
///
/// This is an interface class, so don't expose too much details.
class TcpServer : boost::noncopyable
{
public:
typedef boost::function<void(EventLoop*)> ThreadInitCallback;
//TcpServer(EventLoop* loop, const InetAddress& listenAddr);
TcpServer(EventLoop* loop,
const InetAddress& listenAddr,
const string& nameArg);
~TcpServer(); // force out-line dtor, for scoped_ptr members.
const string& hostport() const { return hostport_; }
const string& name() const { return name_; }
/// Set the number of threads for handling input.
///
/// Always accepts new connection in loop's thread.
/// Must be called before @c start
/// @param numThreads
/// - 0 means all I/O in loop's thread, no thread will created.
/// this is the default value.
/// - 1 means all I/O in another thread.
/// - N means a thread pool with N threads, new connections
/// are assigned on a round-robin basis.
void setThreadNum(int numThreads);
void setThreadInitCallback(const ThreadInitCallback& cb)
{ threadInitCallback_ = cb; }
/// Starts the server if it's not listenning.
///
/// It's harmless to call it multiple times.
/// Thread safe.
void start();
/// Set connection callback.
/// Not thread safe.
// 设置连接到来或者连接关闭回调函数
void setConnectionCallback(const ConnectionCallback& cb)
{ connectionCallback_ = cb; }
/// Set message callback.
/// Not thread safe.
// 设置消息到来回调函数
void setMessageCallback(const MessageCallback& cb)
{ messageCallback_ = cb; }
private:
/// Not thread safe, but in loop
void newConnection(int sockfd, const InetAddress& peerAddr);
/// Thread safe.
void removeConnection(const TcpConnectionPtr& conn);
/// Not thread safe, but in loop
void removeConnectionInLoop(const TcpConnectionPtr& conn);
typedef std::map<string, TcpConnectionPtr> ConnectionMap;
EventLoop* loop_; // the acceptor loop
const string hostport_; // 服务端口
const string name_; // 服务名
boost::scoped_ptr<Acceptor> acceptor_; // avoid revealing Acceptor
boost::scoped_ptr<EventLoopThreadPool> threadPool_; //线程池
ConnectionCallback connectionCallback_;
MessageCallback messageCallback_;
ThreadInitCallback threadInitCallback_; // IO线程池中的线程在进入事件循环前,会回调用此函数
bool started_;
// always in loop thread
int nextConnId_; // 下一个连接ID
ConnectionMap connections_; // 连接列表
};
}
}
#endif // MUDUO_NET_TCPSERVER_H
TcpServer源文件
TcpServer.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
#include <muduo/net/TcpServer.h>
#include <muduo/base/Logging.h>
#include <muduo/net/Acceptor.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/EventLoopThreadPool.h>
#include <muduo/net/SocketsOps.h>
#include <boost/bind.hpp>
#include <stdio.h> // snprintf
using namespace muduo;
using namespace muduo::net;
TcpServer::TcpServer(EventLoop* loop, /*这是main reactor*/
const InetAddress& listenAddr,
const string& nameArg)
: loop_(CHECK_NOTNULL(loop)),
hostport_(listenAddr.toIpPort()),
name_(nameArg),
acceptor_(new Acceptor(loop, listenAddr)),
threadPool_(new EventLoopThreadPool(loop)),
/*connectionCallback_(defaultConnectionCallback),
messageCallback_(defaultMessageCallback),*/
started_(false),
nextConnId_(1)
{
// Acceptor::handleRead函数中会回调用TcpServer::newConnection
// _1对应的是socket文件描述符,_2对应的是对等方的地址(InetAddress)
acceptor_->setNewConnectionCallback(
boost::bind(&TcpServer::newConnection, this, _1, _2));
}
TcpServer::~TcpServer()
{
loop_->assertInLoopThread();
LOG_TRACE << "TcpServer::~TcpServer [" << name_ << "] destructing";
for (ConnectionMap::iterator it(connections_.begin());
it != connections_.end(); ++it)
{
TcpConnectionPtr conn = it->second;
it->second.reset(); // 释放当前所控制的对象,引用计数减一
conn->getLoop()->runInLoop(
boost::bind(&TcpConnection::connectDestroyed, conn));
conn.reset(); // 释放当前所控制的对象,引用计数减一
}
}
void TcpServer::setThreadNum(int numThreads)
{
/*numThreads不包含main reactor thread*/
assert(0 <= numThreads);
threadPool_->setThreadNum(numThreads);
}
// 该函数多次调用是无害的
// 该函数可以跨线程调用
void TcpServer::start()
{
if (!started_)
{
started_ = true;
/*启动线程池*/
threadPool_->start(threadInitCallback_);
}
if (!acceptor_->listenning())
{
// get_pointer返回原生指针
loop_->runInLoop(
boost::bind(&Acceptor::listen, get_pointer(acceptor_)));
}
}
void TcpServer::newConnection(int sockfd, const InetAddress& peerAddr)
{
loop_->assertInLoopThread();
// 按照轮叫的方式选择一个EventLoop
EventLoop* ioLoop = threadPool_->getNextLoop();
char buf[32];
snprintf(buf, sizeof buf, ":%s#%d", hostport_.c_str(), nextConnId_);
++nextConnId_;
string connName = name_ + buf;
LOG_INFO << "TcpServer::newConnection [" << name_
<< "] - new connection [" << connName
<< "] from " << peerAddr.toIpPort();
InetAddress localAddr(sockets::getLocalAddr(sockfd));
// FIXME poll with zero timeout to double confirm the new connection
// FIXME use make_shared if necessary
/*TcpConnectionPtr conn(new TcpConnection(loop_,
connName,
sockfd,
localAddr,
peerAddr));*/
TcpConnectionPtr conn(new TcpConnection(ioLoop,
connName,
sockfd,
localAddr,
peerAddr));
LOG_TRACE << "[1] usecount=" << conn.use_count();
connections_[connName] = conn;
LOG_TRACE << "[2] usecount=" << conn.use_count();
conn->setConnectionCallback(connectionCallback_);
conn->setMessageCallback(messageCallback_);
conn->setCloseCallback(
boost::bind(&TcpServer::removeConnection, this, _1));
// conn->connectEstablished(); 这个表示直接在当前线程中调用
ioLoop->runInLoop(boost::bind(&TcpConnection::connectEstablished, conn));
LOG_TRACE << "[5] usecount=" << conn.use_count();
}
void TcpServer::removeConnection(const TcpConnectionPtr& conn)
{
/*
loop_->assertInLoopThread();
LOG_INFO << "TcpServer::removeConnectionInLoop [" << name_
<< "] - connection " << conn->name();
LOG_TRACE << "[8] usecount=" << conn.use_count();
size_t n = connections_.erase(conn->name());
LOG_TRACE << "[9] usecount=" << conn.use_count();
(void)n;
assert(n == 1);
loop_->queueInLoop(
boost::bind(&TcpConnection::connectDestroyed, conn));
LOG_TRACE << "[10] usecount=" << conn.use_count();
*/
loop_->runInLoop(boost::bind(&TcpServer::removeConnectionInLoop, this, conn));
}
void TcpServer::removeConnectionInLoop(const TcpConnectionPtr& conn)
{
loop_->assertInLoopThread();
LOG_INFO << "TcpServer::removeConnectionInLoop [" << name_
<< "] - connection " << conn->name();
LOG_TRACE << "[8] usecount=" << conn.use_count();
size_t n = connections_.erase(conn->name());
LOG_TRACE << "[9] usecount=" << conn.use_count();
(void)n;
assert(n == 1);
EventLoop* ioLoop = conn->getLoop();
ioLoop->queueInLoop(
boost::bind(&TcpConnection::connectDestroyed, conn));
//loop_->queueInLoop(
// boost::bind(&TcpConnection::connectDestroyed, conn));
LOG_TRACE << "[10] usecount=" << conn.use_count();
}
测试程序
#include <muduo/net/TcpServer.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <boost/bind.hpp>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
class TestServer
{
public:
TestServer(EventLoop* loop,
const InetAddress& listenAddr, int numThreads)
: loop_(loop),
server_(loop, listenAddr, "TestServer"),
numThreads_(numThreads)
{
server_.setConnectionCallback(
boost::bind(&TestServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&TestServer::onMessage, this, _1, _2, _3));
server_.setThreadNum(numThreads);
}
void start()
{
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
if (conn->connected())
{
printf("onConnection(): new connection [%s] from %s\n",
conn->name().c_str(),
conn->peerAddress().toIpPort().c_str());
}
else
{
printf("onConnection(): connection [%s] is down\n",
conn->name().c_str());
}
}
void onMessage(const TcpConnectionPtr& conn,
const char* data,
ssize_t len)
{
printf("onMessage(): received %zd bytes from connection [%s]\n",
len, conn->name().c_str());
}
EventLoop* loop_;
TcpServer server_;
int numThreads_;
};
int main()
{
printf("main(): pid = %d\n", getpid());
InetAddress listenAddr(8888);
EventLoop loop;
TestServer server(&loop, listenAddr,4);
server.start();
loop.loop();
}
return n;
}
[35-2] 文件描述符的分析
code
#include <muduo/net/TcpServer.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <boost/bind.hpp>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
class TestServer
{
public:
TestServer(EventLoop* loop,
const InetAddress& listenAddr)
: loop_(loop),
server_(loop, listenAddr, "TestServer")
{
server_.setConnectionCallback(
boost::bind(&TestServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&TestServer::onMessage, this, _1, _2, _3));
}
void start()
{
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
if (conn->connected())
{
printf("onConnection(): new connection [%s] from %s\n",
conn->name().c_str(),
conn->peerAddress().toIpPort().c_str());
}
else
{
printf("onConnection(): connection [%s] is down\n",
conn->name().c_str());
}
}
void onMessage(const TcpConnectionPtr& conn,
const char* data,
ssize_t len)
{
printf("onMessage(): received %zd bytes from connection [%s]\n",
len, conn->name().c_str());
}
EventLoop* loop_;
TcpServer server_;
};
int main()
{
printf("main(): pid = %d\n", getpid());
InetAddress listenAddr(8888);
EventLoop loop;
TestServer server(&loop, listenAddr);
server.start();
loop.loop();
}
分析结果
0 , 1 ,2 进程默认打开
3 EpollerFd
4 timerFd
5 wakeupFd
6 listenFd
7 idleFd
ubuntu@ubuntu-virtual-machine:~/pro/35$ ./build/debug/bin/reactor_test09
main(): pid = 10797
20131023 08:05:04.423104Z 10797 TRACE updateChannel fd = 4 events = 3 - EPollPoller.cc:104
20131023 08:05:04.423413Z 10797 TRACE EventLoop EventLoop created 0xBF97AAB4 in thread 10797 - EventLoop.cc:62
20131023 08:05:04.423489Z 10797 TRACE updateChannel fd = 5 events = 3 - EPollPoller.cc:104
20131023 08:05:04.423883Z 10797 TRACE updateChannel fd = 6 events = 3 - EPollPoller.cc:104
20131023 08:05:04.423968Z 10797 TRACE loop EventLoop 0xBF97AAB4 start looping - EventLoop.cc:94
20131023 08:05:13.376959Z 10797 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 08:05:13.377558Z 10797 TRACE printActiveChannels {6: IN } - EventLoop.cc:257-----》》有连接到来
20131023 08:05:13.377681Z 10797 INFO TcpServer::newConnection [TestServer] - new connection [TestServer:0.0.0.0:8888#1] from 127.0.0.1:57756 - TcpServer.cc:93
20131023 08:05:13.377719Z 10797 DEBUG TcpConnection TcpConnection::ctor[TestServer:0.0.0.0:8888#1] at 0x8BB3490 fd=8 - TcpConnection.cc:62-------》》已连接的套接字
20131023 08:05:13.377746Z 10797 TRACE newConnection [1] usecount=1 - TcpServer.cc:111
20131023 08:05:13.377772Z 10797 TRACE newConnection [2] usecount=2 - TcpServer.cc:113
20131023 08:05:13.377819Z 10797 TRACE connectEstablished [3] usecount=6 - TcpConnection.cc:78
20131023 08:05:13.377846Z 10797 TRACE updateChannel fd = 8 events = 3 - EPollPoller.cc:104
onConnection(): new connection [TestServer:0.0.0.0:8888#1] from 127.0.0.1:57756
20131023 08:05:13.377902Z 10797 TRACE connectEstablished [4] usecount=6 - TcpConnection.cc:83
20131023 08:05:13.377915Z 10797 TRACE newConnection [5] usecount=2 - TcpServer.cc:122
20131023 08:05:23.388224Z 10797 TRACE poll nothing happended - EPollPoller.cc:74
20131023 08:05:32.910851Z 10797 TRACE poll 1 events happended - EPollPoller.cc:65
20131023 08:05:32.910969Z 10797 TRACE printActiveChannels {8: IN } - EventLoop.cc:257----->>已连接的套接字有可读事件
20131023 08:05:32.910990Z 10797 TRACE handleEvent [6] usecount=2 - Channel.cc:67
onMessage(): received 5 bytes from connection [TestServer:0.0.0.0:8888#1]
20131023 08:05:32.911066Z 10797 TRACE handleEvent [12] usecount=2 - Channel.cc:69
[36-1] BUFFER
1. 应用层缓冲区`Buffer`设计
2. 为什么需要有应用层缓冲区(详见`MuduoManual.pdf P76`)
3. `Buffer`结构
4. `epoll`使用`LT`模式的原因
5. 与`poll`兼容
6. `LT`模式不会发生漏掉事件的`BUG`,但`POLLOUT`事件不能一开始就关注,否则会出现`busy loop`,而应该在`write`无法完全写入内核缓冲区的时候才关注,将未写入内核缓冲区的数据添加到应用层`output buffer`,直到应用层`output buffer`写完,停止关注`POLLOUT`事件。读写的时候不必等候`EAGAIN`,可以节省系统调用次数,降低延迟。(注:如果用`ET`模式,读的时候读到`EAGAIN`,写的时候直到`output buffer`写完或者`EAGAIN`)
BUFFER头文件
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
/*
接收到数据,存至input buffer,通知上层的应用程序,OnMessage(Buffer *buf)回调,根据应用层协议
判断是否一个完整的包,codec,如果不是一条完整的消息,不会取走数据,也不会进行相应的处理,
如果是一条完整的信息,将取走这条信息,并进行相应的处理
对方发送了两条消息,50,350
接收方第一次接收了200,第二次接收了200
从socket读了 200 个字节,写到buffer中
从buffer中取回50 个字节
又从socket读了200个字节,写到buffer中
从buffer中取回350个字节,写到buffer中
从buffer中取回350个字节
*/
#ifndef MUDUO_NET_BUFFER_H
#define MUDUO_NET_BUFFER_H
#include <muduo/base/copyable.h>
#include <muduo/base/StringPiece.h>
#include <muduo/base/Types.h>
#include <muduo/net/Endian.h>
#include <algorithm>
#include <vector>
#include <assert.h>
#include <string.h>
//#include <unistd.h> // ssize_t
namespace muduo
{
namespace net
{
/// A buffer class modeled after org.jboss.netty.buffer.ChannelBuffer
///
/// @code
/// +-------------------+------------------+------------------+
/// | prependable bytes | readable bytes | writable bytes |
/// | | (CONTENT) | |
/// +-------------------+------------------+------------------+
/// | | | |
/// 0 <= readerIndex <= writerIndex <= size
/// @endcode
class Buffer : public muduo::copyable
{
public:
static const size_t kCheapPrepend = 8;
static const size_t kInitialSize = 1024;
Buffer()
/*缓冲区的大小*/
: buffer_(kCheapPrepend + kInitialSize),
/*可读的开始位置*/
readerIndex_(kCheapPrepend),
/*可写的开始位置*/
writerIndex_(kCheapPrepend)
{
assert(readableBytes() == 0);
assert(writableBytes() == kInitialSize);
assert(prependableBytes() == kCheapPrepend);
}
// default copy-ctor(拷贝构造函数), dtor and assignment are fine
void swap(Buffer& rhs)
{
buffer_.swap(rhs.buffer_);
std::swap(readerIndex_, rhs.readerIndex_);
std::swap(writerIndex_, rhs.writerIndex_);
}
/*可读的字节数*/
size_t readableBytes() const
{ return writerIndex_ - readerIndex_; }
/*可写的字节数*/
size_t writableBytes() const
{ return buffer_.size() - writerIndex_; }
/*可预留的空间*/
size_t prependableBytes() const
{ return readerIndex_; }
/*可读位置指针*/
const char* peek() const
{ return begin() + readerIndex_; }
const char* findCRLF() const
{
const char* crlf = std::search(peek(), beginWrite(), kCRLF, kCRLF+2);
return crlf == beginWrite() ? NULL : crlf;
}
const char* findCRLF(const char* start) const
{
assert(peek() <= start);
assert(start <= beginWrite());
const char* crlf = std::search(start, beginWrite(), kCRLF, kCRLF+2);
return crlf == beginWrite() ? NULL : crlf;
}
// retrieve returns void, to prevent
// string str(retrieve(readableBytes()), readableBytes());
// the evaluation of two functions are unspecified
/*取回数据*/
void retrieve(size_t len)
{
assert(len <= readableBytes());
if (len < readableBytes())
{
readerIndex_ += len;
}
else
{
retrieveAll();
}
}
/*取回到指定位置的数据*/
void retrieveUntil(const char* end)
{
assert(peek() <= end);
assert(end <= beginWrite());
retrieve(end - peek());
}
/*取回一个整数*/
void retrieveInt32()
{
retrieve(sizeof(int32_t));
}
/*取回两个字节*/
void retrieveInt16()
{
retrieve(sizeof(int16_t));
}
/*取回一个字节*/
void retrieveInt8()
{
retrieve(sizeof(int8_t));
}
/*取回全部数据*/
void retrieveAll()
{
readerIndex_ = kCheapPrepend;
writerIndex_ = kCheapPrepend;
}
string retrieveAllAsString()
{
return retrieveAsString(readableBytes());;
}
string retrieveAsString(size_t len)
{
assert(len <= readableBytes());
string result(peek(), len);
retrieve(len);
return result;
}
StringPiece toStringPiece() const
{
return StringPiece(peek(), static_cast<int>(readableBytes()));
}
/*追加数据*/
void append(const StringPiece& str)
{
append(str.data(), str.size());
}
void append(const char* /*restrict*/ data, size_t len)
{
ensureWritableBytes(len);
std::copy(data, data+len, beginWrite());
hasWritten(len);
}
void append(const void* /*restrict*/ data, size_t len)
{
append(static_cast<const char*>(data), len);
}
// 确保缓冲区可写空间>=len,如果不足则扩充
void ensureWritableBytes(size_t len)
{
if (writableBytes() < len)
{
makeSpace(len);
}
assert(writableBytes() >= len);
}
/*可写位置的指针*/
char* beginWrite()
{ return begin() + writerIndex_; }
const char* beginWrite() const
{ return begin() + writerIndex_; }
void hasWritten(size_t len)
{ writerIndex_ += len; }
///
/// Append int32_t using network endian
/// 使用网络字节序追加到buffer
void appendInt32(int32_t x)
{
int32_t be32 = sockets::hostToNetwork32(x);
append(&be32, sizeof be32);
}
void appendInt16(int16_t x)
{
int16_t be16 = sockets::hostToNetwork16(x);
append(&be16, sizeof be16);
}
void appendInt8(int8_t x)
{
append(&x, sizeof x);
}
///
/// Read int32_t from network endian
///
/// Require: buf->readableBytes() >= sizeof(int32_t)
int32_t readInt32()
{
int32_t result = peekInt32();
retrieveInt32();
return result;
}
int16_t readInt16()
{
int16_t result = peekInt16();
retrieveInt16();
return result;
}
int8_t readInt8()
{
int8_t result = peekInt8();
retrieveInt8();
return result;
}
///
/// Peek int32_t from network endian
///
/// Require: buf->readableBytes() >= sizeof(int32_t)
int32_t peekInt32() const
{
assert(readableBytes() >= sizeof(int32_t));
int32_t be32 = 0;
::memcpy(&be32, peek(), sizeof be32);
return sockets::networkToHost32(be32);
}
int16_t peekInt16() const
{
assert(readableBytes() >= sizeof(int16_t));
int16_t be16 = 0;
::memcpy(&be16, peek(), sizeof be16);
return sockets::networkToHost16(be16);
}
int8_t peekInt8() const
{
assert(readableBytes() >= sizeof(int8_t));
int8_t x = *peek();
return x;
}
///
/// Prepend int32_t using network endian
///
void prependInt32(int32_t x)
{
int32_t be32 = sockets::hostToNetwork32(x);
prepend(&be32, sizeof be32);
}
void prependInt16(int16_t x)
{
int16_t be16 = sockets::hostToNetwork16(x);
prepend(&be16, sizeof be16);
}
void prependInt8(int8_t x)
{
prepend(&x, sizeof x);
}
void prepend(const void* /*restrict*/ data, size_t len)
{
assert(len <= prependableBytes());
readerIndex_ -= len;
const char* d = static_cast<const char*>(data);
std::copy(d, d+len, begin()+readerIndex_);
}
// 收缩,保留reserve个字节
void shrink(size_t reserve)
{
// FIXME: use vector::shrink_to_fit() in C++ 11 if possible.
Buffer other;
other.ensureWritableBytes(readableBytes()+reserve);
other.append(toStringPiece());
swap(other);
}
/// Read data directly into buffer.
///
/// It may implement with readv(2)
/// @return result of read(2), @c errno is saved
ssize_t readFd(int fd, int* savedErrno);
private:
char* begin()
{ return &*buffer_.begin(); }
const char* begin() const
{ return &*buffer_.begin(); }
void makeSpace(size_t len)
{
if (writableBytes() + prependableBytes() < len + kCheapPrepend)
{
// FIXME: move readable data
buffer_.resize(writerIndex_+len);
}
else
{
// move readable data to the front, make space inside buffer
assert(kCheapPrepend < readerIndex_);
size_t readable = readableBytes();
std::copy(begin()+readerIndex_,
begin()+writerIndex_,
begin()+kCheapPrepend);
readerIndex_ = kCheapPrepend;
writerIndex_ = readerIndex_ + readable;
assert(readable == readableBytes());
}
}
private:
std::vector<char> buffer_; // vector用于替代固定大小数组
size_t readerIndex_; // 读位置
size_t writerIndex_; // 写位置
static const char kCRLF[]; // "\r\n"
};
}
}
#endif // MUDUO_NET_BUFFER_H
BUFFER源文件
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
#include <muduo/net/Buffer.h>
#include <muduo/net/SocketsOps.h>
#include <errno.h>
#include <sys/uio.h>
using namespace muduo;
using namespace muduo::net;
const char Buffer::kCRLF[] = "\r\n";
const size_t Buffer::kCheapPrepend;
const size_t Buffer::kInitialSize;
// 结合栈上的空间,避免内存使用过大,提高内存使用率
// 如果有5K个连接,每个连接就分配64K+64K的缓冲区的话,将占用640M内存,
// 而大多数时候,这些缓冲区的使用率很低
ssize_t Buffer::readFd(int fd, int* savedErrno)
{
// saved an ioctl()/FIONREAD call to tell how much to read
// 节省一次ioctl系统调用(获取有多少可读数据)
char extrabuf[65536];
struct iovec vec[2];
const size_t writable = writableBytes();
// 第一块缓冲区
vec[0].iov_base = begin()+writerIndex_;
vec[0].iov_len = writable;
// 第二块缓冲区
vec[1].iov_base = extrabuf;
vec[1].iov_len = sizeof extrabuf;
const ssize_t n = sockets::readv(fd, vec, 2);
if (n < 0)
{
*savedErrno = errno;
}
else if (implicit_cast<size_t>(n) <= writable) //第一块缓冲区足够容纳
{
writerIndex_ += n;
}
else // 当前缓冲区,不够容纳,因而数据被接收到了第二块缓冲区extrabuf,将其append至buffer
{
writerIndex_ = buffer_.size();
append(extrabuf, n - writable);
}
// if (n == writable + sizeof extrabuf)
// {
// goto line_30;
// }
return n;
}
[37] BUFFER
应用程序想关闭连接,但是可能正处于发送数据的过程中,output buffer中有数据还没有发送完,不能直接调用`close`, `conn->send(buff)`==>`conn->shutdown()`==>`POLLOUT`事件.
关闭写的这一半: 连接状态更改为`kDisconnection`,并没有关闭连接
服务器主动断开与客户端的连接, 这意味着 客户端 `read`返回`0`, `close(conn)` ==> `POLLHUP|POLLIN`
如果是客户端主动关闭连接,那么服务器端只返回`POLLIN`,如果是服务器端主动关闭,然后客户端再关闭,那么服务器端返回`POLLIN`和`POLLHUP`事件
测试程序
服务器
#include <muduo/net/TcpServer.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <boost/bind.hpp>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
class TestServer
{
public:
TestServer(EventLoop* loop,
const InetAddress& listenAddr)
: loop_(loop),
server_(loop, listenAddr, "TestServer")
{
server_.setConnectionCallback(
boost::bind(&TestServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&TestServer::onMessage, this, _1, _2, _3));
message1_.resize(100);
message2_.resize(200);
std::fill(message1_.begin(), message1_.end(), 'A');
std::fill(message2_.begin(), message2_.end(), 'B');
}
void start()
{
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
if (conn->connected())
{
printf("onConnection(): new connection [%s] from %s\n",
conn->name().c_str(),
conn->peerAddress().toIpPort().c_str());
conn->send(message1_);
conn->send(message2_);
conn->shutdown();
}
else
{
printf("onConnection(): connection [%s] is down\n",
conn->name().c_str());
}
}
void onMessage(const TcpConnectionPtr& conn,
Buffer* buf,
Timestamp receiveTime)
{
muduo::string msg(buf->retrieveAllAsString());
printf("onMessage(): received %zd bytes from connection [%s] at %s\n",
msg.size(),
conn->name().c_str(),
receiveTime.toFormattedString().c_str());
conn->send(msg);
}
EventLoop* loop_;
TcpServer server_;
muduo::string message1_;
muduo::string message2_;
};
int main()
{
printf("main(): pid = %d\n", getpid());
InetAddress listenAddr(8888);
EventLoop loop;
TestServer server(&loop, listenAddr);
server.start();
loop.loop();
}
客户端
#include <unistd.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <stdlib.h>
#include <stdio.h>
#include <errno.h>
#include <string.h>
//该程序可能出现粘包问题
#define ERR_EXIT(m) \
do \
{ \
perror(m); \
exit(EXIT_FAILURE); \
} while(0)
int main(void)
{
int sock;
if ((sock = socket(PF_INET, SOCK_STREAM, IPPROTO_TCP)) < 0)
ERR_EXIT("socket");
struct sockaddr_in servaddr;
memset(&servaddr, 0, sizeof(servaddr));
servaddr.sin_family = AF_INET;
servaddr.sin_port = htons(8888);
servaddr.sin_addr.s_addr = inet_addr("127.0.0.1");
if (connect(sock, (struct sockaddr*)&servaddr, sizeof(servaddr)) < 0)
ERR_EXIT("connect");
char buf[1024] ={0};
while (1)
{
int ret = read(sock, buf, sizeof(buf));
printf("ret=%d\n", ret);
if (ret == 0)
break;
fputs(buf, stdout);
fflush(stdout);
memset(buf, 0, sizeof(buf));
}
sleep(10);
close(sock);
return 0;
}
程序输出
服务器:
ubuntu@ubuntu-virtual-machine:~/pro/37$ ./build/debug/bin/reactor_test12
main(): pid = 8683
20131024 07:19:37.457271Z 8683 TRACE updateChannel fd = 4 events = 3 - EPollPoller.cc:104
20131024 07:19:37.457470Z 8683 TRACE EventLoop EventLoop created 0xBFDDAB44 in thread 8683 - EventLoop.cc:62
20131024 07:19:37.457485Z 8683 TRACE updateChannel fd = 5 events = 3 - EPollPoller.cc:104
20131024 07:19:37.457645Z 8683 TRACE updateChannel fd = 6 events = 3 - EPollPoller.cc:104
20131024 07:19:37.457661Z 8683 TRACE loop EventLoop 0xBFDDAB44 start looping - EventLoop.cc:94
20131024 07:19:47.468016Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
20131024 07:19:57.478500Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
20131024 07:20:07.488977Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
20131024 07:20:17.499503Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
20131024 07:20:27.509985Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
20131024 07:20:37.520451Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
20131024 07:20:47.528439Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
20131024 07:20:57.538942Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
20131024 07:21:01.262358Z 8683 TRACE poll 1 events happended - EPollPoller.cc:65
20131024 07:21:01.262792Z 8683 TRACE printActiveChannels {6: IN } - EventLoop.cc:257
20131024 07:21:01.262820Z 8683 TRACE handleEventWithGuard 2222222222222222POLLIN22222222222222222222 - Channel.cc:89
20131024 07:21:01.262881Z 8683 INFO TcpServer::newConnection [TestServer] - new connection [TestServer:0.0.0.0:8888#1] from 127.0.0.1:56659 - TcpServer.cc:93
20131024 07:21:01.262916Z 8683 DEBUG TcpConnection TcpConnection::ctor[TestServer:0.0.0.0:8888#1] at 0x96C65D0 fd=8 - TcpConnection.cc:62
20131024 07:21:01.262934Z 8683 TRACE newConnection [1] usecount=1 - TcpServer.cc:111
20131024 07:21:01.262961Z 8683 TRACE newConnection [2] usecount=2 - TcpServer.cc:113
20131024 07:21:01.262981Z 8683 TRACE connectEstablished [3] usecount=6 - TcpConnection.cc:231
20131024 07:21:01.262998Z 8683 TRACE updateChannel fd = 8 events = 3 - EPollPoller.cc:104
onConnection(): new connection [TestServer:0.0.0.0:8888#1] from 127.0.0.1:56659
20131024 07:21:01.263363Z 8683 TRACE connectEstablished [4] usecount=6 - TcpConnection.cc:236
20131024 07:21:01.263378Z 8683 TRACE newConnection [5] usecount=2 - TcpServer.cc:122
20131024 07:21:11.265287Z 8683 TRACE poll 1 events happended - EPollPoller.cc:65
20131024 07:21:11.265469Z 8683 TRACE printActiveChannels {8: IN HUP } - EventLoop.cc:257
20131024 07:21:11.265483Z 8683 TRACE handleEvent [6] usecount=2 - Channel.cc:67
20131024 07:21:11.265491Z 8683 TRACE handleEventWithGuard 1111111111111111POLLHUP1111111111111111111 - Channel.cc:85
20131024 07:21:11.265498Z 8683 TRACE handleEventWithGuard 2222222222222222POLLIN22222222222222222222 - Channel.cc:89
20131024 07:21:11.265556Z 8683 TRACE handleClose fd = 8 state = 3 - TcpConnection.cc:297
20131024 07:21:11.265567Z 8683 TRACE updateChannel fd = 8 events = 0 - EPollPoller.cc:104
onConnection(): connection [TestServer:0.0.0.0:8888#1] is down
20131024 07:21:11.265588Z 8683 TRACE handleClose [7] usecount=3 - TcpConnection.cc:305
20131024 07:21:11.265604Z 8683 INFO TcpServer::removeConnectionInLoop [TestServer] - connection TestServer:0.0.0.0:8888#1 - TcpServer.cc:153
20131024 07:21:11.265611Z 8683 TRACE removeConnectionInLoop [8] usecount=6 - TcpServer.cc:157
20131024 07:21:11.265626Z 8683 TRACE removeConnectionInLoop [9] usecount=5 - TcpServer.cc:159
20131024 07:21:11.265639Z 8683 TRACE removeConnectionInLoop [10] usecount=6 - TcpServer.cc:170
20131024 07:21:11.265646Z 8683 TRACE handleClose [11] usecount=3 - TcpConnection.cc:308
20131024 07:21:11.265652Z 8683 TRACE handleEvent [12] usecount=2 - Channel.cc:69
20131024 07:21:11.265659Z 8683 TRACE removeChannel fd = 8 - EPollPoller.cc:147
20131024 07:21:11.265682Z 8683 DEBUG ~TcpConnection TcpConnection::dtor[TestServer:0.0.0.0:8888#1] at 0x96C65D0 fd=8 - TcpConnection.cc:69
20131024 07:21:21.275816Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
20131024 07:21:31.285830Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
20131024 07:21:41.296314Z 8683 TRACE poll nothing happended - EPollPoller.cc:74
^C
ubuntu@ubuntu-virtual-machine:~/pro/37$
客户端:
ubuntu@ubuntu-virtual-machine:~/pro/37$ ./a.out
ret=300
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBret=0
[38] 完善TcpConnection
完善TcpConnection
WriteCompleteCallback
含义
HighWaterMarkCallback
含义
boost::any context_
signal(SIGPIPE, SIG_IGN)
// 请看channel class
可变类型解决方案
void*.
这种方法不是类型安全的
boost::any
boost::any
任意类型的类型安全存储以及安全的取回
在标准库容器中存放不同类型的方法,比如说vector<boost::any>
TcpConnection
完整的头文件
TcpConnection.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
#ifndef MUDUO_NET_TCPCONNECTION_H
#define MUDUO_NET_TCPCONNECTION_H
#include <muduo/base/Mutex.h>
#include <muduo/base/StringPiece.h>
#include <muduo/base/Types.h>
#include <muduo/net/Callbacks.h>
#include <muduo/net/Buffer.h>
#include <muduo/net/InetAddress.h>
#include <boost/any.hpp>
#include <boost/enable_shared_from_this.hpp>
#include <boost/noncopyable.hpp>
#include <boost/scoped_ptr.hpp>
#include <boost/shared_ptr.hpp>
namespace muduo
{
namespace net
{
class Channel;
class EventLoop;
class Socket;
///
/// TCP connection, for both client and server usage.
///
/// This is an interface class, so don't expose too much details.
class TcpConnection : boost::noncopyable,
public boost::enable_shared_from_this<TcpConnection>
{
public:
/// Constructs a TcpConnection with a connected sockfd
///
/// User should not create this object.
TcpConnection(EventLoop* loop,
const string& name,
int sockfd,
const InetAddress& localAddr,
const InetAddress& peerAddr);
~TcpConnection();
EventLoop* getLoop() const { return loop_; }
const string& name() const { return name_; }
const InetAddress& localAddress() { return localAddr_; }
const InetAddress& peerAddress() { return peerAddr_; }
bool connected() const { return state_ == kConnected; }
// void send(string&& message); // C++11
void send(const void* message, size_t len);
void send(const StringPiece& message);
// void send(Buffer&& message); // C++11
void send(Buffer* message); // this one will swap data
void shutdown(); // NOT thread safe, no simultaneous calling
void setTcpNoDelay(bool on);
void setContext(const boost::any& context)
{ context_ = context; }
const boost::any& getContext() const
{ return context_; }
boost::any* getMutableContext()
{ return &context_; }
void setConnectionCallback(const ConnectionCallback& cb)
{ connectionCallback_ = cb; }
void setMessageCallback(const MessageCallback& cb)
{ messageCallback_ = cb; }
void setWriteCompleteCallback(const WriteCompleteCallback& cb)
{ writeCompleteCallback_ = cb; }
void setHighWaterMarkCallback(const HighWaterMarkCallback& cb, size_t highWaterMark)
{ highWaterMarkCallback_ = cb; highWaterMark_ = highWaterMark; }
Buffer* inputBuffer()
{ return &inputBuffer_; }
/// Internal use only.
void setCloseCallback(const CloseCallback& cb)
{ closeCallback_ = cb; }
// called when TcpServer accepts a new connection
void connectEstablished(); // should be called only once
// called when TcpServer has removed me from its map
void connectDestroyed(); // should be called only once
private:
enum StateE { kDisconnected, kConnecting, kConnected, kDisconnecting };
void handleRead(Timestamp receiveTime);
void handleWrite();
void handleClose();
void handleError();
void sendInLoop(const StringPiece& message);
void sendInLoop(const void* message, size_t len);
void shutdownInLoop();
void setState(StateE s) { state_ = s; }
EventLoop* loop_; // 所属EventLoop
string name_; // 连接名
StateE state_; // FIXME: use atomic variable
// we don't expose those classes to client.
boost::scoped_ptr<Socket> socket_;
boost::scoped_ptr<Channel> channel_;
InetAddress localAddr_;
InetAddress peerAddr_;
ConnectionCallback connectionCallback_;
MessageCallback messageCallback_;
WriteCompleteCallback writeCompleteCallback_; // 数据发送完毕回调函数,即所有的用户数据都已拷贝到内核缓冲区时回调该函数
// outputBuffer_被清空也会回调该函数,可以理解为低水位标回调函数
HighWaterMarkCallback highWaterMarkCallback_; // 高水位标回调函数
CloseCallback closeCallback_;
size_t highWaterMark_; // 高水位标
Buffer inputBuffer_; // 应用层接收缓冲区
Buffer outputBuffer_; // 应用层发送缓冲区
boost::any context_; // 绑定一个未知类型的上下文对象
};
typedef boost::shared_ptr<TcpConnection> TcpConnectionPtr;
}
}
#endif // MUDUO_NET_TCPCONNECTION_H
TcpConnection 完整的源文件
TcpConnection.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
#include <muduo/net/TcpConnection.h>
#include <muduo/base/Logging.h>
#include <muduo/net/Channel.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/Socket.h>
#include <muduo/net/SocketsOps.h>
#include <boost/bind.hpp>
#include <errno.h>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
void muduo::net::defaultConnectionCallback(const TcpConnectionPtr& conn)
{
LOG_TRACE << conn->localAddress().toIpPort() << " -> "
<< conn->peerAddress().toIpPort() << " is "
<< (conn->connected() ? "UP" : "DOWN");
}
void muduo::net::defaultMessageCallback(const TcpConnectionPtr&,
Buffer* buf,
Timestamp)
{
buf->retrieveAll();
}
TcpConnection::TcpConnection(EventLoop* loop,
const string& nameArg,
int sockfd,
const InetAddress& localAddr,
const InetAddress& peerAddr)
: loop_(CHECK_NOTNULL(loop)),
name_(nameArg),
state_(kConnecting),
socket_(new Socket(sockfd)),
channel_(new Channel(loop, sockfd)),
localAddr_(localAddr),
peerAddr_(peerAddr),
highWaterMark_(64*1024*1024)
{
// 通道可读事件到来的时候,回调TcpConnection::handleRead,_1是事件发生时间
channel_->setReadCallback(
boost::bind(&TcpConnection::handleRead, this, _1));
// 通道可写事件到来的时候,回调TcpConnection::handleWrite
channel_->setWriteCallback(
boost::bind(&TcpConnection::handleWrite, this));
// 连接关闭,回调TcpConnection::handleClose
channel_->setCloseCallback(
boost::bind(&TcpConnection::handleClose, this));
// 发生错误,回调TcpConnection::handleError
channel_->setErrorCallback(
boost::bind(&TcpConnection::handleError, this));
LOG_DEBUG << "TcpConnection::ctor[" << name_ << "] at " << this
<< " fd=" << sockfd;
socket_->setKeepAlive(true);
}
TcpConnection::~TcpConnection()
{
LOG_DEBUG << "TcpConnection::dtor[" << name_ << "] at " << this
<< " fd=" << channel_->fd();
}
// 线程安全,可以跨线程调用
void TcpConnection::send(const void* data, size_t len)
{
if (state_ == kConnected)
{
if (loop_->isInLoopThread())
{
sendInLoop(data, len);
}
else
{
string message(static_cast<const char*>(data), len);
loop_->runInLoop(
boost::bind(&TcpConnection::sendInLoop,
this,
message));
}
}
}
// 线程安全,可以跨线程调用
void TcpConnection::send(const StringPiece& message)
{
if (state_ == kConnected)
{
if (loop_->isInLoopThread())
{
sendInLoop(message);
}
else
{
loop_->runInLoop(
boost::bind(&TcpConnection::sendInLoop,
this,
message.as_string()));
//std::forward<string>(message)));
}
}
}
// 线程安全,可以跨线程调用
void TcpConnection::send(Buffer* buf)
{
if (state_ == kConnected)
{
if (loop_->isInLoopThread())
{
sendInLoop(buf->peek(), buf->readableBytes());
buf->retrieveAll();
}
else
{
loop_->runInLoop(
boost::bind(&TcpConnection::sendInLoop,
this,
buf->retrieveAllAsString()));
//std::forward<string>(message)));
}
}
}
void TcpConnection::sendInLoop(const StringPiece& message)
{
sendInLoop(message.data(), message.size());
}
void TcpConnection::sendInLoop(const void* data, size_t len)
{
/*
loop_->assertInLoopThread();
sockets::write(channel_->fd(), data, len);
*/
loop_->assertInLoopThread();
ssize_t nwrote = 0;
size_t remaining = len;
bool error = false;
if (state_ == kDisconnected)
{
LOG_WARN << "disconnected, give up writing";
return;
}
// if no thing in output queue, try writing directly
// 通道没有关注可写事件并且发送缓冲区没有数据,直接write
if (!channel_->isWriting() && outputBuffer_.readableBytes() == 0)
{
nwrote = sockets::write(channel_->fd(), data, len);
if (nwrote >= 0)
{
remaining = len - nwrote;
// 写完了,回调writeCompleteCallback_
if (remaining == 0 && writeCompleteCallback_)
{
loop_->queueInLoop(boost::bind(writeCompleteCallback_, shared_from_this()));
}
}
else // nwrote < 0
{
nwrote = 0;
if (errno != EWOULDBLOCK)
{
LOG_SYSERR << "TcpConnection::sendInLoop";
if (errno == EPIPE) // FIXME: any others?
{
error = true;
}
}
}
}
assert(remaining <= len);
// 没有错误,并且还有未写完的数据(说明内核发送缓冲区满,要将未写完的数据添加到output buffer中)
if (!error && remaining > 0)
{
LOG_TRACE << "I am going to write more data";
size_t oldLen = outputBuffer_.readableBytes();
// 如果超过highWaterMark_(高水位标),回调highWaterMarkCallback_
//即使oldLen + remaining >= highWaterMark_ ,remain的数据也是可以存放到buffer中的,因为buffer
//自动伸缩的
if (oldLen + remaining >= highWaterMark_
&& oldLen < highWaterMark_
&& highWaterMarkCallback_)
{
loop_->queueInLoop(boost::bind(highWaterMarkCallback_, shared_from_this(), oldLen + remaining));
}
outputBuffer_.append(static_cast<const char*>(data)+nwrote, remaining);
if (!channel_->isWriting())
{
channel_->enableWriting(); // 关注POLLOUT事件
}
}
}
void TcpConnection::shutdown()
{
// FIXME: use compare and swap
if (state_ == kConnected)
{
setState(kDisconnecting);
// FIXME: shared_from_this()?
loop_->runInLoop(boost::bind(&TcpConnection::shutdownInLoop, this));
}
}
void TcpConnection::shutdownInLoop()
{
loop_->assertInLoopThread();
if (!channel_->isWriting())
{
// we are not writing
socket_->shutdownWrite();
}
}
void TcpConnection::setTcpNoDelay(bool on)
{
socket_->setTcpNoDelay(on);
}
void TcpConnection::connectEstablished()
{
loop_->assertInLoopThread();
assert(state_ == kConnecting);
setState(kConnected);
LOG_TRACE << "[3] usecount=" << shared_from_this().use_count();
channel_->tie(shared_from_this());
channel_->enableReading(); // TcpConnection所对应的通道加入到Poller关注
connectionCallback_(shared_from_this());
LOG_TRACE << "[4] usecount=" << shared_from_this().use_count();
}
void TcpConnection::connectDestroyed()
{
loop_->assertInLoopThread();
if (state_ == kConnected)
{
setState(kDisconnected);
channel_->disableAll();
connectionCallback_(shared_from_this());
}
channel_->remove();
}
void TcpConnection::handleRead(Timestamp receiveTime)
{
/*
loop_->assertInLoopThread();
int savedErrno = 0;
ssize_t n = inputBuffer_.readFd(channel_->fd(), &savedErrno);
if (n > 0)
{
messageCallback_(shared_from_this(), &inputBuffer_, receiveTime);
}
else if (n == 0)
{
handleClose();
}
else
{
errno = savedErrno;
LOG_SYSERR << "TcpConnection::handleRead";
handleError();
}
*/
/*
loop_->assertInLoopThread();
int savedErrno = 0;
char buf[65536];
ssize_t n = ::read(channel_->fd(), buf, sizeof buf);
if (n > 0)
{
messageCallback_(shared_from_this(), buf, n);
}
else if (n == 0)
{
handleClose();
}
else
{
errno = savedErrno;
LOG_SYSERR << "TcpConnection::handleRead";
handleError();
}
*/
loop_->assertInLoopThread();
int savedErrno = 0;
/*一次性读完内核缓冲区的数据,这可以防止busy loop*/
ssize_t n = inputBuffer_.readFd(channel_->fd(), &savedErrno);
if (n > 0)
{
messageCallback_(shared_from_this(), &inputBuffer_, receiveTime);
}
else if (n == 0)
{
//读到文件eof ,就是对等方已经关闭连接
handleClose();
}
else
{
errno = savedErrno;
LOG_SYSERR << "TcpConnection::handleRead";
handleError();
}
}
// 内核发送缓冲区有空间了,回调该函数
void TcpConnection::handleWrite()
{
loop_->assertInLoopThread();
/*通道有关注write事件 */
if (channel_->isWriting())
{
/*写数据到内核中*/
ssize_t n = sockets::write(channel_->fd(),
outputBuffer_.peek(),
outputBuffer_.readableBytes());
if (n > 0)
{
outputBuffer_.retrieve(n);
if (outputBuffer_.readableBytes() == 0) // 发送缓冲区已清空
{
channel_->disableWriting(); // 停止关注POLLOUT事件,以免出现busy loop
if (writeCompleteCallback_) // 回调writeCompleteCallback_
{
// 应用层发送缓冲区被清空,就回调用writeCompleteCallback_
loop_->queueInLoop(boost::bind(writeCompleteCallback_, shared_from_this()));
}
/*如果状态码是kDisconnecting ,说明应用层已经发起shutdown命令了,这是最后一个数据包,
所以发完就可以关闭了。
请参照void TcpConnection::shutdownInLoop()
*/
if (state_ == kDisconnecting) // 发送缓冲区已清空并且连接状态是kDisconnecting, 要关闭连接
{
shutdownInLoop(); // 关闭连接
}
}
else
{
LOG_TRACE << "I am going to write more data";
}
}
else
{
LOG_SYSERR << "TcpConnection::handleWrite";
// if (state_ == kDisconnecting)
// {
// shutdownInLoop();
// }
}
}
else
{
LOG_TRACE << "Connection fd = " << channel_->fd()
<< " is down, no more writing";
}
}
void TcpConnection::handleClose()
{
loop_->assertInLoopThread();
LOG_TRACE << "fd = " << channel_->fd() << " state = " << state_;
assert(state_ == kConnected || state_ == kDisconnecting);
// we don't close fd, leave it to dtor, so we can find leaks easily.
setState(kDisconnected);
channel_->disableAll();
TcpConnectionPtr guardThis(shared_from_this());
connectionCallback_(guardThis); // 这一行,可以不调用
LOG_TRACE << "[7] usecount=" << guardThis.use_count();
// must be the last line
closeCallback_(guardThis); // 调用TcpServer::removeConnection
LOG_TRACE << "[11] usecount=" << guardThis.use_count();
}
void TcpConnection::handleError()
{
int err = sockets::getSocketError(channel_->fd());
LOG_ERROR << "TcpConnection::handleError [" << name_
<< "] - SO_ERROR = " << err << " " << strerror_tl(err);
}
测试程序
#include <muduo/net/TcpServer.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <boost/bind.hpp>
#include <stdio.h>
/*
程序说明:
客户端请求连接-------》服务器马上发送一堆数据
*/
using namespace muduo;
using namespace muduo::net;
class TestServer
{
public:
TestServer(EventLoop* loop,
const InetAddress& listenAddr)
: loop_(loop),
server_(loop, listenAddr, "TestServer")
{
server_.setConnectionCallback(
boost::bind(&TestServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&TestServer::onMessage, this, _1, _2, _3));
server_.setWriteCompleteCallback(
boost::bind(&TestServer::onWriteComplete, this, _1));
// 这是一个数据生成协议
string line;
for (int i = 33; i < 127; ++i)
{
line.push_back(char(i));
}
line += line;
for (size_t i = 0; i < 127-33; ++i)
{
message_ += line.substr(i, 72) + '\n';
}
}
void start()
{
server_.start();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
if (conn->connected())
{
printf("onConnection(): new connection [%s] from %s\n",
conn->name().c_str(),
conn->peerAddress().toIpPort().c_str());
conn->setTcpNoDelay(true);
/*连接到来直接发送数据*/
conn->send(message_);
}
else
{
printf("onConnection(): connection [%s] is down\n",
conn->name().c_str());
}
}
void onMessage(const TcpConnectionPtr& conn,
Buffer* buf,
Timestamp receiveTime)
{
muduo::string msg(buf->retrieveAllAsString());
printf("onMessage(): received %zd bytes from connection [%s] at %s\n",
msg.size(),
conn->name().c_str(),
receiveTime.toFormattedString().c_str());
conn->send(msg);
}
void onWriteComplete(const TcpConnectionPtr& conn)
{ /*可写事件,在发送*/
conn->send(message_);
}
EventLoop* loop_;
TcpServer server_;
muduo::string message_;
};
int main()
{
printf("main(): pid = %d\n", getpid());
InetAddress listenAddr(8888);
EventLoop loop;
TestServer server(&loop, listenAddr);
server.start();
loop.loop();
}
[39] TcpClient和connector
muduo
库对编写tcp
(主动发起连接TcpClient
)- 客户端程序的支持
Connector
(包含了一个Connector
对象)
测试程序
- Reactor_test11.cc // echo server
- TcpClient_test.cc // echo client
TcpClient 头文件
TcpClient.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
#ifndef MUDUO_NET_TCPCLIENT_H
#define MUDUO_NET_TCPCLIENT_H
#include <boost/noncopyable.hpp>
#include <muduo/base/Mutex.h>
#include <muduo/net/TcpConnection.h>
namespace muduo
{
namespace net
{
class Connector;
typedef boost::shared_ptr<Connector> ConnectorPtr;
class TcpClient : boost::noncopyable
{
public:
// TcpClient(EventLoop* loop);
// TcpClient(EventLoop* loop, const string& host, uint16_t port);
TcpClient(EventLoop* loop,
const InetAddress& serverAddr,
const string& name);
~TcpClient(); // force out-line dtor, for scoped_ptr members.
void connect();
void disconnect();
void stop();
TcpConnectionPtr connection() const
{
MutexLockGuard lock(mutex_);
return connection_;
}
bool retry() const;
void enableRetry() { retry_ = true; }
/// Set connection callback.
/// Not thread safe.
void setConnectionCallback(const ConnectionCallback& cb)
{ connectionCallback_ = cb; }
/// Set message callback.
/// Not thread safe.
void setMessageCallback(const MessageCallback& cb)
{ messageCallback_ = cb; }
/// Set write complete callback.
/// Not thread safe.
void setWriteCompleteCallback(const WriteCompleteCallback& cb)
{ writeCompleteCallback_ = cb; }
private:
/// Not thread safe, but in loop
void newConnection(int sockfd);
/// Not thread safe, but in loop
void removeConnection(const TcpConnectionPtr& conn);
EventLoop* loop_;
ConnectorPtr connector_; // 用于主动发起连接
const string name_; // 名称
ConnectionCallback connectionCallback_; // 连接建立回调函数
MessageCallback messageCallback_; // 消息到来回调函数
WriteCompleteCallback writeCompleteCallback_; // 数据发送完毕回调函数
bool retry_; // 重连,是指连接建立之后又断开的时候是否重连,
//这个跟connector里面的retry是不一样的,connector里面的retry表示连接不成功时是否要重连
bool connect_; // atomic 是否发起连接
// always in loop thread
int nextConnId_; // name_ + nextConnId_用于标识一个连接
mutable MutexLock mutex_;
TcpConnectionPtr connection_; // Connector连接成功以后,得到一个TcpConnection
};
}
}
#endif // MUDUO_NET_TCPCLIENT_H
TcpClient 源文件
TcpClient.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
#include <muduo/net/TcpClient.h>
#include <muduo/base/Logging.h>
#include <muduo/net/Connector.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/SocketsOps.h>
#include <boost/bind.hpp>
#include <stdio.h> // snprintf
using namespace muduo;
using namespace muduo::net;
// TcpClient::TcpClient(EventLoop* loop)
// : loop_(loop)
// {
// }
// TcpClient::TcpClient(EventLoop* loop, const string& host, uint16_t port)
// : loop_(CHECK_NOTNULL(loop)),
// serverAddr_(host, port)
// {
// }
namespace muduo
{
namespace net
{
namespace detail
{
void removeConnection(EventLoop* loop, const TcpConnectionPtr& conn)
{
loop->queueInLoop(boost::bind(&TcpConnection::connectDestroyed, conn));
}
void removeConnector(const ConnectorPtr& connector)
{
//connector->
}
}
}
}
TcpClient::TcpClient(EventLoop* loop,
const InetAddress& serverAddr,
const string& name)
: loop_(CHECK_NOTNULL(loop)),
connector_(new Connector(loop, serverAddr)),
name_(name),
connectionCallback_(defaultConnectionCallback),
messageCallback_(defaultMessageCallback),
retry_(false),
connect_(true),
nextConnId_(1)
{
// 设置连接成功回调函数
connector_->setNewConnectionCallback(
boost::bind(&TcpClient::newConnection, this, _1));
// FIXME setConnectFailedCallback
LOG_INFO << "TcpClient::TcpClient[" << name_
<< "] - connector " << get_pointer(connector_);
}
TcpClient::~TcpClient()
{
LOG_INFO << "TcpClient::~TcpClient[" << name_
<< "] - connector " << get_pointer(connector_);
TcpConnectionPtr conn;
{
MutexLockGuard lock(mutex_);
conn = connection_;
}
if (conn)
{
// FIXME: not 100% safe, if we are in different thread
// 重新设置TcpConnection中的closeCallback_为detail::removeConnection
//这里不用TcpClient::removeConnection的原因是 TcpClient::removeConnection 有重连功能,
//这里已经不需要重连了,直接调用detail::removeConnection就行了
CloseCallback cb = boost::bind(&detail::removeConnection, loop_, _1);
loop_->runInLoop(
boost::bind(&TcpConnection::setCloseCallback, conn, cb));
}
else
{
// 这种情况,说明connector处于未连接状态,将connector_停止
connector_->stop();
// FIXME: HACK
loop_->runAfter(1, boost::bind(&detail::removeConnector, connector_));
}
}
void TcpClient::connect()
{
// FIXME: check state
LOG_INFO << "TcpClient::connect[" << name_ << "] - connecting to "
<< connector_->serverAddress().toIpPort();
connect_ = true;
connector_->start(); // 发起连接
}
// 用于连接已建立的情况下,关闭连接
void TcpClient::disconnect()
{
connect_ = false;
{
MutexLockGuard lock(mutex_);
if (connection_)
{
connection_->shutdown();
}
}
}
// 停止connector_ ,连接尚未成功时进行断开
void TcpClient::stop()
{
connect_ = false;
connector_->stop();
}
//有新的连接到来
void TcpClient::newConnection(int sockfd)
{
loop_->assertInLoopThread();
InetAddress peerAddr(sockets::getPeerAddr(sockfd));
char buf[32];
snprintf(buf, sizeof buf, ":%s#%d", peerAddr.toIpPort().c_str(), nextConnId_);
++nextConnId_;
string connName = name_ + buf;
InetAddress localAddr(sockets::getLocalAddr(sockfd));
// FIXME poll with zero timeout to double confirm the new connection
// FIXME use make_shared if necessary
TcpConnectionPtr conn(new TcpConnection(loop_,
connName,
sockfd,
localAddr,
peerAddr));
conn->setConnectionCallback(connectionCallback_);
conn->setMessageCallback(messageCallback_);
conn->setWriteCompleteCallback(writeCompleteCallback_);
conn->setCloseCallback(
boost::bind(&TcpClient::removeConnection, this, _1)); // FIXME: unsafe
{
MutexLockGuard lock(mutex_);
connection_ = conn; // 保存TcpConnection
}
conn->connectEstablished(); // 这里回调connectionCallback_
}
/*移除connector*/
void TcpClient::removeConnection(const TcpConnectionPtr& conn)
{
loop_->assertInLoopThread();
assert(loop_ == conn->getLoop());
{
MutexLockGuard lock(mutex_);
assert(connection_ == conn);
connection_.reset();
}
/*放到IO线程中销毁*/
loop_->queueInLoop(boost::bind(&TcpConnection::connectDestroyed, conn));
//如果需要重连,则重新连接
if (retry_ && connect_)
{
LOG_INFO << "TcpClient::connect[" << name_ << "] - Reconnecting to "
<< connector_->serverAddress().toIpPort();
// 这里的重连是指连接建立成功之后被断开的重连
connector_->restart();
}
}
Connector 头文件
Connector.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is an internal header file, you should not include this.
#ifndef MUDUO_NET_CONNECTOR_H
#define MUDUO_NET_CONNECTOR_H
#include <muduo/net/InetAddress.h>
#include <boost/enable_shared_from_this.hpp>
#include <boost/function.hpp>
#include <boost/noncopyable.hpp>
#include <boost/scoped_ptr.hpp>
namespace muduo
{
namespace net
{
class Channel;
class EventLoop;
// 主动发起连接,带有自动重连功能
class Connector : boost::noncopyable,
public boost::enable_shared_from_this<Connector>
{
public:
typedef boost::function<void (int sockfd)> NewConnectionCallback;
Connector(EventLoop* loop, const InetAddress& serverAddr);
~Connector();
/*设置连接成功后的回调函数*/
void setNewConnectionCallback(const NewConnectionCallback& cb)
{ newConnectionCallback_ = cb; }
void start(); // can be called in any thread
void restart(); // must be called in loop thread
void stop(); // can be called in any thread
//服务器IP地址
const InetAddress& serverAddress() const { return serverAddr_; }
private:
enum States { kDisconnected/*断开状态*/, kConnecting/*正在连接中*/, kConnected/*已连接*/ };
static const int kMaxRetryDelayMs = 30*1000; // 30秒,最大重连延迟时间
static const int kInitRetryDelayMs = 500; // 0.5秒,初始状态,连接不上,0.5秒后重连
void setState(States s) { state_ = s; }
void startInLoop();
void stopInLoop();
void connect();
void connecting(int sockfd);
void handleWrite();
void handleError();
void retry(int sockfd);
int removeAndResetChannel();
void resetChannel();
EventLoop* loop_; // 所属EventLoop
InetAddress serverAddr_; // 服务器端地址
bool connect_; // atomic是否连接
States state_; // FIXME: use atomic variable
boost::scoped_ptr<Channel> channel_; // Connector所对应的Channel
NewConnectionCallback newConnectionCallback_; // 连接成功回调函数,
int retryDelayMs_; // 重连延迟时间(单位:毫秒)
};
}
}
#endif // MUDUO_NET_CONNECTOR_H
Connector 源文件
Connector.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
#include <muduo/net/Connector.h>
#include <muduo/base/Logging.h>
#include <muduo/net/Channel.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/SocketsOps.h>
#include <boost/bind.hpp>
#include <errno.h>
using namespace muduo;
using namespace muduo::net;
const int Connector::kMaxRetryDelayMs;
Connector::Connector(EventLoop* loop, const InetAddress& serverAddr)
: loop_(loop),
serverAddr_(serverAddr),
connect_(false),
state_(kDisconnected),
retryDelayMs_(kInitRetryDelayMs)
{
LOG_DEBUG << "ctor[" << this << "]";
}
Connector::~Connector()
{
LOG_DEBUG << "dtor[" << this << "]";
assert(!channel_);
}
// 可以跨线程调用 ,把重新发起的连接函数放到IO线程去,所以是线程
// 安全的
void Connector::start()
{
connect_ = true;
loop_->runInLoop(boost::bind(&Connector::startInLoop, this)); // FIXME: unsafe
}
/*重新发起连接*/
void Connector::startInLoop()
{
loop_->assertInLoopThread();
assert(state_ == kDisconnected);
if (connect_)
{
/*如果为true 重新连接,
如果调用stop 后,那么connect_ = false
*/
connect();
}
else
{
LOG_DEBUG << "do not connect";
}
}
/*让IO线程线程停止连接,这个连接处于*/
void Connector::stop()
{
connect_ = false;
loop_->runInLoop(boost::bind(&Connector::stopInLoop, this)); // FIXME: unsafe
// FIXME: cancel timer
}
void Connector::stopInLoop()
{
loop_->assertInLoopThread();
if (state_ == kConnecting)
{
setState(kDisconnected);
int sockfd = removeAndResetChannel(); // 将通道从poller中移除关注,并将channel置空
retry(sockfd); // 这里并非要重连,只是调用sockets::close(sockfd);
}
}
/*发起连接 */
void Connector::connect()
{
int sockfd = sockets::createNonblockingOrDie(); // 创建非阻塞套接字
/*进行连接请求*/
int ret = sockets::connect(sockfd, serverAddr_.getSockAddrInet());
int savedErrno = (ret == 0) ? 0 : errno;
switch (savedErrno)
{
case 0:
case EINPROGRESS: // 非阻塞套接字,未连接成功返回码是EINPROGRESS表示正在连接
case EINTR:
case EISCONN: // 连接成功
connecting(sockfd);
break;
case EAGAIN:
case EADDRINUSE:
case EADDRNOTAVAIL:
case ECONNREFUSED:
case ENETUNREACH:
retry(sockfd); // 重连
break;
case EACCES:
case EPERM:
case EAFNOSUPPORT:
case EALREADY:
case EBADF:
case EFAULT:
case ENOTSOCK:
LOG_SYSERR << "connect error in Connector::startInLoop " << savedErrno;
sockets::close(sockfd); // 不能重连,关闭sockfd
break;
default:
LOG_SYSERR << "Unexpected error in Connector::startInLoop " << savedErrno;
sockets::close(sockfd);
// connectErrorCallback_();
break;
}
}
// 不能跨线程调用
void Connector::restart()
{
loop_->assertInLoopThread();
setState(kDisconnected);
retryDelayMs_ = kInitRetryDelayMs;
connect_ = true;
startInLoop();
}
void Connector::connecting(int sockfd)
{
//不管是真正连接还是连接成功了,都把状态设置为kConnecting
setState(kConnecting);
assert(!channel_);
// Channel与sockfd关联
channel_.reset(new Channel(loop_, sockfd));
// 设置可写回调函数,主要是为了“正在连接”状态设置的
channel_->setWriteCallback(
boost::bind(&Connector::handleWrite, this)); // FIXME: unsafe
// 设置错误回调函数
channel_->setErrorCallback(
boost::bind(&Connector::handleError, this)); // FIXME: unsafe
// channel_->tie(shared_from_this()); is not working,
// as channel_ is not managed by shared_ptr
channel_->enableWriting(); // 让Poller关注可写事件,writing一定产生,不管是连接成功还是连接失败,
//
}
int Connector::removeAndResetChannel()
{
channel_->disableAll();
channel_->remove(); // 从poller移除关注
int sockfd = channel_->fd();
// Can't reset channel_ here, because we are inside Channel::handleEvent
// 不能在这里重置channel_,因为正在调用Channel::handleEvent
loop_->queueInLoop(boost::bind(&Connector::resetChannel, this)); // FIXME: unsafe
return sockfd;
}
void Connector::resetChannel()
{
channel_.reset(); // channel_ 置空
}
void Connector::handleWrite()
{
LOG_TRACE << "Connector::handleWrite " << state_;
/*由于在Connector::connecting注册可写事件时,“状态” 被设置为kConnecting(不管完不完成连接),
所以第一次handleWrite时,得把“状态”设置为kConnected*/
if (state_ == kConnecting)
{
/*这里不用再关注可写事件了,这里也是防止busy loop*/
int sockfd = removeAndResetChannel(); // 从poller中移除关注,并将channel置空
// socket可写并不意味着连接一定建立成功
// 还需要用getsockopt(sockfd, SOL_SOCKET, SO_ERROR, ...)再次确认一下。
int err = sockets::getSocketError(sockfd);
if (err) // 有错误
{
LOG_WARN << "Connector::handleWrite - SO_ERROR = "
<< err << " " << strerror_tl(err);
retry(sockfd); // 重连
}
else if (sockets::isSelfConnect(sockfd)) // 自连接
{
LOG_WARN << "Connector::handleWrite - Self connect";
retry(sockfd); // 重连
}
else // 连接成功
{
setState(kConnected);
if (connect_)
{
newConnectionCallback_(sockfd); // 回调连接成功的回调函数
}
else
{
sockets::close(sockfd);
}
}
}
else
{
// what happened?
assert(state_ == kDisconnected);
}
}
/*连接出错的处理函数*/
void Connector::handleError()
{
LOG_ERROR << "Connector::handleError";
assert(state_ == kConnecting);
int sockfd = removeAndResetChannel(); // 从poller中移除关注,并将channel置空
int err = sockets::getSocketError(sockfd);
LOG_TRACE << "SO_ERROR = " << err << " " << strerror_tl(err);
retry(sockfd);
}
// 采用back-off策略重连,即重连时间逐渐延长,0.5s, 1s, 2s, ...直至30s
void Connector::retry(int sockfd)
{
sockets::close(sockfd);
setState(kDisconnected);
if (connect_)
{
LOG_INFO << "Connector::retry - Retry connecting to " << serverAddr_.toIpPort()
<< " in " << retryDelayMs_ << " milliseconds. ";
// 注册一个定时操作,重连
loop_->runAfter(retryDelayMs_/1000.0,
boost::bind(&Connector::startInLoop, shared_from_this()));
retryDelayMs_ = std::min(retryDelayMs_ * 2, kMaxRetryDelayMs);
}
else
{
LOG_DEBUG << "do not connect";
}
}
测试程序
#include <muduo/net/Channel.h>
#include <muduo/net/TcpClient.h>
#include <muduo/base/Logging.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/InetAddress.h>
#include <boost/bind.hpp>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
class TestClient
{
public:
TestClient(EventLoop* loop, const InetAddress& listenAddr)
: loop_(loop),
client_(loop, listenAddr, "TestClient"),
stdinChannel_(loop, 0)
{
client_.setConnectionCallback(
boost::bind(&TestClient::onConnection, this, _1));
client_.setMessageCallback(
boost::bind(&TestClient::onMessage, this, _1, _2, _3));
//client_.enableRetry();
// 标准输入缓冲区中有数据的时候,回调TestClient::handleRead
stdinChannel_.setReadCallback(boost::bind(&TestClient::handleRead, this));
stdinChannel_.enableReading();
}
void connect()
{
client_.connect();
}
private:
void onConnection(const TcpConnectionPtr& conn)
{
if (conn->connected())
{
printf("onConnection(): new connection [%s] from %s\n",
conn->name().c_str(),
conn->peerAddress().toIpPort().c_str());
}
else
{
printf("onConnection(): connection [%s] is down\n",
conn->name().c_str());
}
}
void onMessage(const TcpConnectionPtr& conn, Buffer* buf, Timestamp time)
{
string msg(buf->retrieveAllAsString());
printf("onMessage(): recv a message [%s]\n", msg.c_str());
LOG_TRACE << conn->name() << " recv " << msg.size() << " bytes at " << time.toFormattedString();
}
// 标准输入缓冲区中有数据的时候,回调该函数
void handleRead()
{
char buf[1024] = {0};
fgets(buf, 1024, stdin);
buf[strlen(buf)-1] = '\0'; // 去除\n
client_.connection()->send(buf);
}
EventLoop* loop_;
TcpClient client_;
Channel stdinChannel_; // 标准输入Channel
};
int main(int argc, char* argv[])
{
LOG_INFO << "pid = " << getpid() << ", tid = " << CurrentThread::tid();
EventLoop loop;
InetAddress serverAddr("127.0.0.1", 8888);
TestClient client(&loop, serverAddr);
client.connect();
loop.loop();
}
[40] http 简单描述
http request
request line
+ header
+ body
(header
分为普通报头,请求报头与实体报头) header
与body
之间有一空行(CRLF
)
请求方法有
Get
, Post
, Head
, Put
, Delete
等
协议版本号:1.0
, 1.1
常用请求头
- Accept:浏览器可接受的媒体(MIME)类型;
- Accept-Language:浏览器所希望的语言种类
- Accept-Encoding:浏览器能够解码的编码方法,如gzip,deflate等
- User-Agent:告诉HTTP服务器, 客户端使用的操作系统和浏览器的名称和版本
- Connection:表示是否需要持久连接,Keep-Alive表示长连接,close表示短连接
http response
status line + header + body (header分为普通报头,响应报头与实体报头) header与body之间有一空行(CRLF)
状态响应码
- 1XX 提示信息 表示请求已被成功接收,继续处理
- 2XX 成功 表示请求已被成功接收,理解,接受
- 3XX 重定向 要完成请求必须进行更进一步的处理
- 4XX 客户端错误 请求有语法错误或请求无法实现
- 5XX 服务器端错误 服务器执行一个有效请求失败
一个典型的http请求
GET / HTTP/1.1 (请求行)
Accept: image/jpeg, application/x-ms-application, image/gif, application/xaml+xml, image/pjpeg, application/x-ms-xbap, application/vnd.ms-excel, application/vnd.ms-powerpoint, application/msword, */*(请求头)
Accept-Language: zh-CN(请求头)
User-Agent: Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Trident/4.0; SLCC2; .NET CLR 2.0.50727; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0; Tablet PC 2.0)(请求头)
Accept-Encoding: gzip, deflate(请求头)
Host: 192.168.159.188:800(请求头)
Connection: Keep-Alive(请求头)
/*当前是get请求,没有body,如果是post请求的话会有实体*/
一个典型的http应答
HTTP/1.1 200 OK(请求行)
Content-Length: 112(头部)
Connection: Keep-Alive(头部)
Content-Type: text/html(头部)
Server: Muduo(头部)
<html><head><title>This is title</title></head><body><h1>Hello</h1>Now is 20130611 02:14:31.518462</body></html>(实体)
muduo_http库涉及到的类
HttpRequest:http请求类封装
HttpResponse:http响应类封装
HttpContext:http协议解析类
HttpServer:http服务器类封装
[40-1] http实现源码
HttpRequest头文件(包含实现)
HttpResquest.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
#ifndef MUDUO_NET_HTTP_HTTPREQUEST_H
#define MUDUO_NET_HTTP_HTTPREQUEST_H
#include <muduo/base/copyable.h>
#include <muduo/base/Timestamp.h>
#include <muduo/base/Types.h>
#include <map>
#include <assert.h>
#include <stdio.h>
namespace muduo
{
namespace net
{
class HttpRequest : public muduo::copyable
{
public:
enum Method
{
kInvalid, kGet, kPost, kHead, kPut, kDelete
};
enum Version
{
kUnknown, kHttp10, kHttp11
};
HttpRequest()
: method_(kInvalid),
version_(kUnknown)
{
}
void setVersion(Version v)
{
version_ = v;
}
Version getVersion() const
{ return version_; }
/*设置请求方法*/
bool setMethod(const char* start, const char* end)
{
assert(method_ == kInvalid);
string m(start, end);
if (m == "GET")
{
method_ = kGet;
}
else if (m == "POST")
{
method_ = kPost;
}
else if (m == "HEAD")
{
method_ = kHead;
}
else if (m == "PUT")
{
method_ = kPut;
}
else if (m == "DELETE")
{
method_ = kDelete;
}
else
{
method_ = kInvalid;
}
return method_ != kInvalid;
}
/*返回请求方法*/
Method method() const
{ return method_; }
/*请求方法转为字符串*/
const char* methodString() const
{
const char* result = "UNKNOWN";
switch(method_)
{
case kGet:
result = "GET";
break;
case kPost:
result = "POST";
break;
case kHead:
result = "HEAD";
break;
case kPut:
result = "PUT";
break;
case kDelete:
result = "DELETE";
break;
default:
break;
}
return result;
}
/*设置请求路径*/
void setPath(const char* start, const char* end)
{
path_.assign(start, end);
}
/*返回请求路径*/
const string& path() const
{ return path_; }
/*设置接收时间*/
void setReceiveTime(Timestamp t)
{ receiveTime_ = t; }
Timestamp receiveTime() const
{ return receiveTime_; }
/*添加一个头部信息*/
/*
Accept-Language(start):(colon) zh-CN(end)
-->Accept-Language
zh-CN
*/
void addHeader(const char* start, const char* colon, const char* end)
{
string field(start, colon); // header域
++colon;
// 去除左空格
while (colon < end && isspace(*colon))
{
++colon;
}
string value(colon, end); // header值
// 去除右空格
while (!value.empty() && isspace(value[value.size()-1]))
{
value.resize(value.size()-1);
}
headers_[field] = value;
}
/*根据头域,获得头域的信息*/
string getHeader(const string& field) const
{
string result;
std::map<string, string>::const_iterator it = headers_.find(field);
if (it != headers_.end())
{
result = it->second;
}
return result;
}
const std::map<string, string>& headers() const
{ return headers_; }
void swap(HttpRequest& that)
{
/*貌似少了version的交换*/
std::swap(method_, that.method_);
path_.swap(that.path_);
receiveTime_.swap(that.receiveTime_);
headers_.swap(that.headers_);
}
private:
Method method_; // 请求方法
Version version_; // 协议版本1.0/1.1
string path_; // 请求路径
Timestamp receiveTime_; // 请求时间
std::map<string, string> headers_; // header列表
};
}
}
#endif // MUDUO_NET_HTTP_HTTPREQUEST_H
HttpResponse头文件
HttpResponse.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
#ifndef MUDUO_NET_HTTP_HTTPRESPONSE_H
#define MUDUO_NET_HTTP_HTTPRESPONSE_H
#include <muduo/base/copyable.h>
#include <muduo/base/Types.h>
#include <map>
namespace muduo
{
namespace net
{
class Buffer;
class HttpResponse : public muduo::copyable
{
public:
enum HttpStatusCode
{
kUnknown,
k200Ok = 200, // 成功
k301MovedPermanently = 301, // 301重定向,请求的页面永久性移至另一个地址
k400BadRequest = 400, // 错误的请求,语法格式有错,服务器无法处理此请求
k404NotFound = 404, // 请求的网页不存在
};
explicit HttpResponse(bool close)
: statusCode_(kUnknown),
closeConnection_(close)
{
}
void setStatusCode(HttpStatusCode code)
{ statusCode_ = code; }
void setStatusMessage(const string& message)
{ statusMessage_ = message; }
void setCloseConnection(bool on)
{ closeConnection_ = on; }
bool closeConnection() const
{ return closeConnection_; }
// 设置文档媒体类型(MIME)
void setContentType(const string& contentType)
{ addHeader("Content-Type", contentType); }
// FIXME: replace string with StringPiece
void addHeader(const string& key, const string& value)
{ headers_[key] = value; }
void setBody(const string& body)
{ body_ = body; }
void appendToBuffer(Buffer* output) const; // 将HttpResponse添加到Buffer
private:
std::map<string, string> headers_; // header列表
HttpStatusCode statusCode_; // 状态响应码
// FIXME: add http version
string statusMessage_; // 状态响应码对应的文本信息
bool closeConnection_; // 是否关闭连接
string body_; // 实体
};
}
}
#endif // MUDUO_NET_HTTP_HTTPRESPONSE_H
HttpResponse源文件
HttpResponse.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
#include <muduo/net/http/HttpResponse.h>
#include <muduo/net/Buffer.h>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
void HttpResponse::appendToBuffer(Buffer* output) const
{
char buf[32];
// 添加响应头
snprintf(buf, sizeof buf, "HTTP/1.1 %d ", statusCode_);
output->append(buf);
output->append(statusMessage_);
output->append("\r\n");
if (closeConnection_)
{
// 如果是短连接,不需要告诉浏览器Content-Length,浏览器也能正确处理
// 短链接不会出现粘包问题
output->append("Connection: close\r\n");
}
else
{
snprintf(buf, sizeof buf, "Content-Length: %zd\r\n", body_.size()); // 实体长度
output->append(buf);
output->append("Connection: Keep-Alive\r\n");
}
// header列表
for (std::map<string, string>::const_iterator it = headers_.begin();
it != headers_.end();
++it)
{
output->append(it->first);
output->append(": ");
output->append(it->second);
output->append("\r\n");
}
output->append("\r\n"); // header与body之间的空行
output->append(body_);
}
HttpContext文件
HttpContext.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is an internal header file, you should not include this.
#ifndef MUDUO_NET_HTTP_HTTPCONTEXT_H
#define MUDUO_NET_HTTP_HTTPCONTEXT_H
#include <muduo/base/copyable.h>
#include <muduo/net/http/HttpRequest.h>
namespace muduo
{
namespace net
{
class HttpContext : public muduo::copyable
{
public:
enum HttpRequestParseState
{
kExpectRequestLine,//正处于请求行的状态
kExpectHeaders, //正处于请求头的状态
kExpectBody, //正处于请求实体的状态
kGotAll, //全部都解析完毕
};
HttpContext()
: state_(kExpectRequestLine)
{
}
// default copy-ctor, dtor and assignment are fine
bool expectRequestLine() const
{ return state_ == kExpectRequestLine; }
bool expectHeaders() const
{ return state_ == kExpectHeaders; }
bool expectBody() const
{ return state_ == kExpectBody; }
bool gotAll() const
{ return state_ == kGotAll; }
void receiveRequestLine()
{ state_ = kExpectHeaders; }
/*注意这里没有处理body实体的请求*/
void receiveHeaders()
{ state_ = kGotAll; } // FIXME
// 重置HttpContext状态
void reset()
{
state_ = kExpectRequestLine;
HttpRequest dummy;
request_.swap(dummy);
}
const HttpRequest& request() const
{ return request_; }
HttpRequest& request()
{ return request_; }
private:
HttpRequestParseState state_; // 请求解析状态
HttpRequest request_; // http请求
};
}
}
#endif // MUDUO_NET_HTTP_HTTPCONTEXT_H
HttpServer头文件
HttpServer.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
#ifndef MUDUO_NET_HTTP_HTTPSERVER_H
#define MUDUO_NET_HTTP_HTTPSERVER_H
#include <muduo/net/TcpServer.h>
#include <boost/noncopyable.hpp>
namespace muduo
{
namespace net
{
class HttpRequest;
class HttpResponse;
/// A simple embeddable HTTP server designed for report status of a program.
/// It is not a fully HTTP 1.1 compliant server, but provides minimum features
/// that can communicate with HttpClient and Web browser.
/// It is synchronous, just like Java Servlet.
class HttpServer : boost::noncopyable
{
public:
typedef boost::function<void (const HttpRequest&,
HttpResponse*)> HttpCallback;
HttpServer(EventLoop* loop,
const InetAddress& listenAddr,
const string& name);
~HttpServer(); // force out-line dtor, for scoped_ptr members.
/// Not thread safe, callback be registered before calling start().
void setHttpCallback(const HttpCallback& cb)
{
httpCallback_ = cb;
}
/*subIO thread numbers*/
void setThreadNum(int numThreads)
{
server_.setThreadNum(numThreads);
}
void start();
private:
void onConnection(const TcpConnectionPtr& conn);
/*当以http请求到来时
onMessage--->onRequest--->HttpCallback
*/
void onMessage(const TcpConnectionPtr& conn,
Buffer* buf,
Timestamp receiveTime);
void onRequest(const TcpConnectionPtr&, const HttpRequest&);
TcpServer server_;
HttpCallback httpCallback_; // 在处理http请求(即调用onRequest)的过程中回调此函数,对请求进行具体的处理
};
}
}
#endif // MUDUO_NET_HTTP_HTTPSERVER_H
````
### HttpServer源文件
HttpServer.cc
``` c++
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
#include <muduo/net/http/HttpServer.h>
#include <muduo/base/Logging.h>
#include <muduo/net/http/HttpContext.h>
#include <muduo/net/http/HttpRequest.h>
#include <muduo/net/http/HttpResponse.h>
#include <boost/bind.hpp>
using namespace muduo;
using namespace muduo::net;
/*
GET / HTTP/1.1 (请求行)
Accept: image/jpeg, application/x-ms-application, image/gif, application/xaml+xml, image/pjpeg, application/x-ms-xbap, application/vnd.ms-excel, application/vnd.ms-powerpoint, application/msword(请求头)
Accept-Language: zh-CN(请求头)
User-Agent: Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Trident/4.0; SLCC2; .NET CLR 2.0.50727; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0; Tablet PC 2.0)(请求头)
Accept-Encoding: gzip, deflate(请求头)
Host: 192.168.159.188:800(请求头)
Connection: Keep-Alive(请求头)
*/
namespace muduo
{
namespace net
{
namespace detail
{
// FIXME: move to HttpContext class
bool processRequestLine(const char* begin, const char* end, HttpContext* context)
{
bool succeed = false;
const char* start = begin;
const char* space = std::find(start, end, ' ');
HttpRequest& request = context->request();
if (space != end && request.setMethod(start, space)) // 解析请求方法
{
start = space+1;
space = std::find(start, end, ' ');
if (space != end)
{
request.setPath(start, space); // 解析PATH
start = space+1;
succeed = end-start == 8 && std::equal(start, end-1, "HTTP/1.");
if (succeed)
{
if (*(end-1) == '1')
{
request.setVersion(HttpRequest::kHttp11); // HTTP/1.1
}
else if (*(end-1) == '0')
{
request.setVersion(HttpRequest::kHttp10); // HTTP/1.0
}
else
{
succeed = false;
}
}
}
}
return succeed;
}
// FIXME: move to HttpContext class
// return false if any error
// 开始解析请求
bool parseRequest(Buffer* buf, HttpContext* context, Timestamp receiveTime)
{
bool ok = true;
bool hasMore = true;
while (hasMore)
{
if (context->expectRequestLine()) // 处于解析请求行状态
{
const char* crlf = buf->findCRLF();
if (crlf)
{
ok = processRequestLine(buf->peek(), crlf, context); // 解析请求行 ,*crlf ='\r'
if (ok)
{
context->request().setReceiveTime(receiveTime); // 设置请求时间
buf->retrieveUntil(crlf + 2); // 将请求行从buf中取回,包括\r\n
context->receiveRequestLine(); // 将HttpContext状态改为kExpectHeaders
}
else
{
hasMore = false;
}
}
else
{
hasMore = false;
}
}
else if (context->expectHeaders()) // 解析header
{
const char* crlf = buf->findCRLF();
if (crlf)
{
const char* colon = std::find(buf->peek(), crlf, ':'); //冒号所在位置
if (colon != crlf)
{
context->request().addHeader(buf->peek(), colon, crlf);
}
else
{
// empty line, end of header
context->receiveHeaders(); // HttpContext将状态改为kGotAll
hasMore = !context->gotAll();
}
buf->retrieveUntil(crlf + 2); // 将header从buf中取回,包括\r\n
}
else
{
hasMore = false;
}
}
else if (context->expectBody()) // 当前还不支持请求中带body
{
// FIXME:
}
}
return ok;
}
void defaultHttpCallback(const HttpRequest&, HttpResponse* resp)
{
resp->setStatusCode(HttpResponse::k404NotFound);
resp->setStatusMessage("Not Found");
resp->setCloseConnection(true);
}
}
}
}
HttpServer::HttpServer(EventLoop* loop,
const InetAddress& listenAddr,
const string& name)
: server_(loop, listenAddr, name),
httpCallback_(detail::defaultHttpCallback)
{
server_.setConnectionCallback(
boost::bind(&HttpServer::onConnection, this, _1));
server_.setMessageCallback(
boost::bind(&HttpServer::onMessage, this, _1, _2, _3));
}
HttpServer::~HttpServer()
{
}
void HttpServer::start()
{
LOG_WARN << "HttpServer[" << server_.name()
<< "] starts listenning on " << server_.hostport();
server_.start();
}
void HttpServer::onConnection(const TcpConnectionPtr& conn)
{
if (conn->connected())
{
//boost any
conn->setContext(HttpContext()); // TcpConnection与一个HttpContext绑定
}
}
void HttpServer::onMessage(const TcpConnectionPtr& conn,
Buffer* buf,
Timestamp receiveTime)
{
HttpContext* context = boost::any_cast<HttpContext>(conn->getMutableContext());
if (!detail::parseRequest(buf, context, receiveTime))
{
conn->send("HTTP/1.1 400 Bad Request\r\n\r\n");
conn->shutdown();
}
// 请求消息解析完毕
if (context->gotAll())
{
onRequest(conn, context->request());
context->reset(); // 本次请求处理完毕,重置HttpContext,适用于长连接
}
}
void HttpServer::onRequest(const TcpConnectionPtr& conn, const HttpRequest& req)
{
const string& connection = req.getHeader("Connection");
//是否关闭连接
bool close = connection == "close" ||
(req.getVersion() == HttpRequest::kHttp10 && connection != "Keep-Alive");
HttpResponse response(close);
httpCallback_(req, &response);//回调用户函数
Buffer buf;
response.appendToBuffer(&buf);
conn->send(&buf);
if (response.closeConnection())
{
conn->shutdown();
}
}
测试程序
#include <muduo/net/http/HttpServer.h>
#include <muduo/net/http/HttpRequest.h>
#include <muduo/net/http/HttpResponse.h>
#include <muduo/net/EventLoop.h>
#include <muduo/base/Logging.h>
#include <iostream>
#include <map>
using namespace muduo;
using namespace muduo::net;
extern char favicon[555];
bool benchmark = false;
// 实际的请求处理
void onRequest(const HttpRequest& req, HttpResponse* resp)
{
std::cout << "Headers " << req.methodString() << " " << req.path() << std::endl;
if (!benchmark)
{
const std::map<string, string>& headers = req.headers();
for (std::map<string, string>::const_iterator it = headers.begin();
it != headers.end();
++it)
{
std::cout << it->first << ": " << it->second << std::endl;
}
}
if (req.path() == "/")
{
resp->setStatusCode(HttpResponse::k200Ok);
resp->setStatusMessage("OK");
resp->setContentType("text/html");
resp->addHeader("Server", "Muduo");
string now = Timestamp::now().toFormattedString();
resp->setBody("<html><head><title>This is title</title></head>"
"<body><h1>Hello</h1>Now is " + now +
"</body></html>");
}
else if (req.path() == "/favicon.ico")
{
resp->setStatusCode(HttpResponse::k200Ok);
resp->setStatusMessage("OK");
resp->setContentType("image/png");
resp->setBody(string(favicon, sizeof favicon));
}
else if (req.path() == "/hello")
{
resp->setStatusCode(HttpResponse::k200Ok);
resp->setStatusMessage("OK");
resp->setContentType("text/plain");
resp->addHeader("Server", "Muduo");
resp->setBody("hello, world!\n");
}
else
{
resp->setStatusCode(HttpResponse::k404NotFound);
resp->setStatusMessage("Not Found");
resp->setCloseConnection(true);
}
}
int main(int argc, char* argv[])
{
int numThreads = 0;
if (argc > 1)
{
benchmark = true;
Logger::setLogLevel(Logger::WARN);
numThreads = atoi(argv[1]);
}
EventLoop loop;
HttpServer server(&loop, InetAddress(8000), "dummy");
server.setHttpCallback(onRequest);
server.setThreadNum(numThreads);
server.start();
loop.loop();
}
// 这是一个图片数据
char favicon[555] = {
'\x89', 'P', 'N', 'G', '\xD', '\xA', '\x1A', '\xA',
'\x0', '\x0', '\x0', '\xD', 'I', 'H', 'D', 'R',
'\x0', '\x0', '\x0', '\x10', '\x0', '\x0', '\x0', '\x10',
'\x8', '\x6', '\x0', '\x0', '\x0', '\x1F', '\xF3', '\xFF',
'a', '\x0', '\x0', '\x0', '\x19', 't', 'E', 'X',
't', 'S', 'o', 'f', 't', 'w', 'a', 'r',
'e', '\x0', 'A', 'd', 'o', 'b', 'e', '\x20',
'I', 'm', 'a', 'g', 'e', 'R', 'e', 'a',
'd', 'y', 'q', '\xC9', 'e', '\x3C', '\x0', '\x0',
'\x1', '\xCD', 'I', 'D', 'A', 'T', 'x', '\xDA',
'\x94', '\x93', '9', 'H', '\x3', 'A', '\x14', '\x86',
'\xFF', '\x5D', 'b', '\xA7', '\x4', 'R', '\xC4', 'm',
'\x22', '\x1E', '\xA0', 'F', '\x24', '\x8', '\x16', '\x16',
'v', '\xA', '6', '\xBA', 'J', '\x9A', '\x80', '\x8',
'A', '\xB4', 'q', '\x85', 'X', '\x89', 'G', '\xB0',
'I', '\xA9', 'Q', '\x24', '\xCD', '\xA6', '\x8', '\xA4',
'H', 'c', '\x91', 'B', '\xB', '\xAF', 'V', '\xC1',
'F', '\xB4', '\x15', '\xCF', '\x22', 'X', '\x98', '\xB',
'T', 'H', '\x8A', 'd', '\x93', '\x8D', '\xFB', 'F',
'g', '\xC9', '\x1A', '\x14', '\x7D', '\xF0', 'f', 'v',
'f', '\xDF', '\x7C', '\xEF', '\xE7', 'g', 'F', '\xA8',
'\xD5', 'j', 'H', '\x24', '\x12', '\x2A', '\x0', '\x5',
'\xBF', 'G', '\xD4', '\xEF', '\xF7', '\x2F', '6', '\xEC',
'\x12', '\x20', '\x1E', '\x8F', '\xD7', '\xAA', '\xD5', '\xEA',
'\xAF', 'I', '5', 'F', '\xAA', 'T', '\x5F', '\x9F',
'\x22', 'A', '\x2A', '\x95', '\xA', '\x83', '\xE5', 'r',
'9', 'd', '\xB3', 'Y', '\x96', '\x99', 'L', '\x6',
'\xE9', 't', '\x9A', '\x25', '\x85', '\x2C', '\xCB', 'T',
'\xA7', '\xC4', 'b', '1', '\xB5', '\x5E', '\x0', '\x3',
'h', '\x9A', '\xC6', '\x16', '\x82', '\x20', 'X', 'R',
'\x14', 'E', '6', 'S', '\x94', '\xCB', 'e', 'x',
'\xBD', '\x5E', '\xAA', 'U', 'T', '\x23', 'L', '\xC0',
'\xE0', '\xE2', '\xC1', '\x8F', '\x0', '\x9E', '\xBC', '\x9',
'A', '\x7C', '\x3E', '\x1F', '\x83', 'D', '\x22', '\x11',
'\xD5', 'T', '\x40', '\x3F', '8', '\x80', 'w', '\xE5',
'3', '\x7', '\xB8', '\x5C', '\x2E', 'H', '\x92', '\x4',
'\x87', '\xC3', '\x81', '\x40', '\x20', '\x40', 'g', '\x98',
'\xE9', '6', '\x1A', '\xA6', 'g', '\x15', '\x4', '\xE3',
'\xD7', '\xC8', '\xBD', '\x15', '\xE1', 'i', '\xB7', 'C',
'\xAB', '\xEA', 'x', '\x2F', 'j', 'X', '\x92', '\xBB',
'\x18', '\x20', '\x9F', '\xCF', '3', '\xC3', '\xB8', '\xE9',
'N', '\xA7', '\xD3', 'l', 'J', '\x0', 'i', '6',
'\x7C', '\x8E', '\xE1', '\xFE', 'V', '\x84', '\xE7', '\x3C',
'\x9F', 'r', '\x2B', '\x3A', 'B', '\x7B', '7', 'f',
'w', '\xAE', '\x8E', '\xE', '\xF3', '\xBD', 'R', '\xA9',
'd', '\x2', 'B', '\xAF', '\x85', '2', 'f', 'F',
'\xBA', '\xC', '\xD9', '\x9F', '\x1D', '\x9A', 'l', '\x22',
'\xE6', '\xC7', '\x3A', '\x2C', '\x80', '\xEF', '\xC1', '\x15',
'\x90', '\x7', '\x93', '\xA2', '\x28', '\xA0', 'S', 'j',
'\xB1', '\xB8', '\xDF', '\x29', '5', 'C', '\xE', '\x3F',
'X', '\xFC', '\x98', '\xDA', 'y', 'j', 'P', '\x40',
'\x0', '\x87', '\xAE', '\x1B', '\x17', 'B', '\xB4', '\x3A',
'\x3F', '\xBE', 'y', '\xC7', '\xA', '\x26', '\xB6', '\xEE',
'\xD9', '\x9A', '\x60', '\x14', '\x93', '\xDB', '\x8F', '\xD',
'\xA', '\x2E', '\xE9', '\x23', '\x95', '\x29', 'X', '\x0',
'\x27', '\xEB', 'n', 'V', 'p', '\xBC', '\xD6', '\xCB',
'\xD6', 'G', '\xAB', '\x3D', 'l', '\x7D', '\xB8', '\xD2',
'\xDD', '\xA0', '\x60', '\x83', '\xBA', '\xEF', '\x5F', '\xA4',
'\xEA', '\xCC', '\x2', 'N', '\xAE', '\x5E', 'p', '\x1A',
'\xEC', '\xB3', '\x40', '9', '\xAC', '\xFE', '\xF2', '\x91',
'\x89', 'g', '\x91', '\x85', '\x21', '\xA8', '\x87', '\xB7',
'X', '\x7E', '\x7E', '\x85', '\xBB', '\xCD', 'N', 'N',
'b', 't', '\x40', '\xFA', '\x93', '\x89', '\xEC', '\x1E',
'\xEC', '\x86', '\x2', 'H', '\x26', '\x93', '\xD0', 'u',
'\x1D', '\x7F', '\x9', '2', '\x95', '\xBF', '\x1F', '\xDB',
'\xD7', 'c', '\x8A', '\x1A', '\xF7', '\x5C', '\xC1', '\xFF',
'\x22', 'J', '\xC3', '\x87', '\x0', '\x3', '\x0', 'K',
'\xBB', '\xF8', '\xD6', '\x2A', 'v', '\x98', 'I', '\x0',
'\x0', '\x0', '\x0', 'I', 'E', 'N', 'D', '\xAE',
'B', '\x60', '\x82',
};
[41] muduo_inspect库源码分析
- muduo_inspect库通过HTTP方式为服务器提供监控接口
- 接受了多少个TCP连接
- 当前有多少个活动连接
- 一共响应了多少次请求
每次请求的平均响应时间多少毫秒
Inspector // 包含了一个HttpServer对象
ProcessInspector // 通过ProcessInfo返回进程信息
ProcessInfo // 获取进程相关信息
ProcessInspectort头文件
ProcessInspector.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is an internal header file, you should not include this.
#ifndef MUDUO_NET_INSPECT_PROCESSINSPECTOR_H
#define MUDUO_NET_INSPECT_PROCESSINSPECTOR_H
#include <muduo/net/inspect/Inspector.h>
#include <boost/noncopyable.hpp>
namespace muduo
{
namespace net
{
class ProcessInspector : boost::noncopyable
{
public:
void registerCommands(Inspector* ins); // 注册命令接口
private:
static string pid(HttpRequest::Method, const Inspector::ArgList&);
static string procStatus(HttpRequest::Method, const Inspector::ArgList&);
static string openedFiles(HttpRequest::Method, const Inspector::ArgList&);
static string threads(HttpRequest::Method, const Inspector::ArgList&);
};
}
}
#endif // MUDUO_NET_INSPECT_PROCESSINSPECTOR_H
ProcessInspectort源文件
ProcessInspector.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
#include <muduo/net/inspect/ProcessInspector.h>
#include <muduo/base/ProcessInfo.h>
#include <stdio.h>
using namespace muduo;
using namespace muduo::net;
/*命令注册*/
void ProcessInspector::registerCommands(Inspector* ins)
{
/*muduo : proc
command : pid
commandCallback : pid
commnadHelp : print id
*/
ins->add("proc", "pid", ProcessInspector::pid, "print pid");
ins->add("proc", "status", ProcessInspector::procStatus, "print /proc/self/status");
ins->add("proc", "opened_files", ProcessInspector::openedFiles, "count /proc/self/fd");
ins->add("proc", "threads", ProcessInspector::threads, "list /proc/self/task");
}
string ProcessInspector::pid(HttpRequest::Method, const Inspector::ArgList&)
{
char buf[32];
snprintf(buf, sizeof buf, "%d", ProcessInfo::pid());
return buf;
}
string ProcessInspector::procStatus(HttpRequest::Method, const Inspector::ArgList&)
{
return ProcessInfo::procStatus();
}
string ProcessInspector::openedFiles(HttpRequest::Method, const Inspector::ArgList&)
{
char buf[32];
snprintf(buf, sizeof buf, "%d", ProcessInfo::openedFiles());
return buf;
}
string ProcessInspector::threads(HttpRequest::Method, const Inspector::ArgList&)
{
std::vector<pid_t> threads = ProcessInfo::threads();
string result;
for (size_t i = 0; i < threads.size(); ++i)
{
char buf[32];
snprintf(buf, sizeof buf, "%d\n", threads[i]);
result += buf;
}
return result;
}
Inspector头文件
Inspector.h
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
// This is a public header file, it must only include public header files.
#ifndef MUDUO_NET_INSPECT_INSPECTOR_H
#define MUDUO_NET_INSPECT_INSPECTOR_H
#include <muduo/base/Mutex.h>
#include <muduo/net/http/HttpRequest.h>
#include <muduo/net/http/HttpServer.h>
#include <map>
#include <boost/function.hpp>
#include <boost/noncopyable.hpp>
#include <boost/scoped_ptr.hpp>
namespace muduo
{
namespace net
{
class ProcessInspector;
// A internal inspector of the running process, usually a singleton.
class Inspector : boost::noncopyable
{
public:
typedef std::vector<string> ArgList;
typedef boost::function<string (HttpRequest::Method, const ArgList& args)> Callback;
Inspector(EventLoop* loop,
const InetAddress& httpAddr,
const string& name);
~Inspector();
// 如add("proc", "pid", ProcessInspector::pid, "print pid");
// http://192.168.159.188:12345/proc/pid这个http请求就会相应的调用ProcessInspector::pid来处理
void add(const string& module,
const string& command,
const Callback& cb,
const string& help);
private:
typedef std::map<string, Callback> CommandList;
typedef std::map<string, string> HelpList;
void start();
void onRequest(const HttpRequest& req, HttpResponse* resp);
HttpServer server_;
boost::scoped_ptr<ProcessInspector> processInspector_;
MutexLock mutex_;
std::map<string, CommandList> commands_;
std::map<string, HelpList> helps_;
/*
commands_ --- > <muduo commandlist>
helps_ ----> <muduo helplist>
commandlist---> <command callback>
HelpList ----> <command helplist>
commands_[][]=xx
helps_[][]=xxx
*/
};
}
}
#endif // MUDUO_NET_INSPECT_INSPECTOR_H
Inspector源文件
Inspector.cc
// Copyright 2010, Shuo Chen. All rights reserved.
// http://code.google.com/p/muduo/
//
// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
// Author: Shuo Chen (chenshuo at chenshuo dot com)
//
#include <muduo/net/inspect/Inspector.h>
#include <muduo/base/Thread.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/http/HttpRequest.h>
#include <muduo/net/http/HttpResponse.h>
#include <muduo/net/inspect/ProcessInspector.h>
//#include <iostream>
//#include <iterator>
//#include <sstream>
#include <boost/bind.hpp>
#include <boost/algorithm/string/classification.hpp>
#include <boost/algorithm/string/split.hpp>
using namespace muduo;
using namespace muduo::net;
namespace
{
Inspector* g_globalInspector = 0;
// Looks buggy
std::vector<string> split(const string& str)
{
std::vector<string> result;
size_t start = 0;
size_t pos = str.find('/');
while (pos != string::npos)
{
if (pos > start)
{
result.push_back(str.substr(start, pos-start));
}
start = pos+1;
pos = str.find('/', start);
}
if (start < str.length()) // 说明最后一个字符不是'/'
{
result.push_back(str.substr(start));
}
return result;
}
}
Inspector::Inspector(EventLoop* loop,
const InetAddress& httpAddr,
const string& name)
: server_(loop, httpAddr, "Inspector:"+name),
processInspector_(new ProcessInspector)
{
//断言在主线程当中
assert(CurrentThread::isMainThread());
assert(g_globalInspector == 0);
g_globalInspector = this;
/*设置请求的回调函数,这里的请求是完成了协议的解析之后*/
server_.setHttpCallback(boost::bind(&Inspector::onRequest, this, _1, _2));
/*注册命令*/
processInspector_->registerCommands(this);
// 这样子做法是为了防止竞态问题
// 如果直接调用start,(当前线程不是loop所属的IO线程,是主线程)那么有可能,当前构造函数还没返回,
// HttpServer所在的IO线程可能已经收到了http客户端的请求了(因为这时候HttpServer已启动),那么就会回调
// Inspector::onRequest,而这时候构造函数还没返回,也就是说对象还没完全构造好。那么就会出现问题了
loop->runAfter(0, boost::bind(&Inspector::start, this)); // little race condition
}
Inspector::~Inspector()
{
assert(CurrentThread::isMainThread());
g_globalInspector = NULL;
}
void Inspector::add(const string& module,
const string& command,
const Callback& cb,
const string& help)
{
/*这里要不要加锁??
因为在构造函数时 程序是注册完 processInspector_->registerCommands(this); 才执行
loop->runAfter(0, boost::bind(&Inspector::start, this)); // little race condition。
如果程序进行扩充时,就要了。
class TcpInspector : boost::noncopyable
{
public:
void registerCommands(Inspector* ins); // 注册命令接口
private:
static string pid(HttpRequest::Method, const Inspector::ArgList&);
static string procStatus(HttpRequest::Method, const Inspector::ArgList&);
static string openedFiles(HttpRequest::Method, const Inspector::ArgList&);
static string threads(HttpRequest::Method, const Inspector::ArgList&);
};
MyInspector :public ProcessInspector
{
TcpInspector
} ;
那么
MyInspector{
HttpServer server_;
boost::scoped_ptr<ProcessInspector> processInspector;
boost::scoped_ptr<ProcessInspector> TcpInspector;
MutexLock mutex_;
std::map<string, CommandList> commands_;
std::map<string, HelpList> helps_;
}
那么MyInspector 在初始化时,会初始化ProcessInspector 和TcpInspector,
如果ProcessInspector初始化完毕后,启动了OnreRequest(),而TcpInspector还没注册完,
也就是说TcpInspector还在add()函数中,那么不加锁的话,就会出现问题了。
*/
MutexLockGuard lock(mutex_);
commands_[module][command] = cb;
helps_[module][command] = help;
}
void Inspector::start()
{
server_.start();
}
void Inspector::onRequest(const HttpRequest& req, HttpResponse* resp)
{
if (req.path() == "/")
{
string result;
MutexLockGuard lock(mutex_);
// 遍历helps
for (std::map<string, HelpList>::const_iterator helpListI = helps_.begin();
helpListI != helps_.end();
++helpListI)
{
const HelpList& list = helpListI->second;
for (HelpList::const_iterator it = list.begin();
it != list.end();
++it)
{
result += "/";
result += helpListI->first; // module
result += "/";
result += it->first; // command
result += "\t";
result += it->second; // help
result += "\n";
}
}
resp->setStatusCode(HttpResponse::k200Ok);
resp->setStatusMessage("OK");
resp->setContentType("text/plain");
resp->setBody(result);
}
else
{
// 以"/"进行分割,将得到的字符串保存在result中
std::vector<string> result = split(req.path());
// boost::split(result, req.path(), boost::is_any_of("/"));
//std::copy(result.begin(), result.end(), std::ostream_iterator<string>(std::cout, ", "));
//std::cout << "\n";
bool ok = false;
if (result.size() == 0)
{
// 这种情况是错误的,因此ok仍为false
}
else if (result.size() == 1)
{
// 只有module,没有command也是错的,因此ok仍为false
string module = result[0];
}
else
{
string module = result[0];
// 查找module所对应的命令列表
std::map<string, CommandList>::const_iterator commListI = commands_.find(module);
if (commListI != commands_.end())
{
string command = result[1];
const CommandList& commList = commListI->second;
// 查找command对应的命令
CommandList::const_iterator it = commList.find(command);
if (it != commList.end())
{
ArgList args(result.begin()+2, result.end()); // 传递给回调函数的参数表
if (it->second)
{
resp->setStatusCode(HttpResponse::k200Ok);
resp->setStatusMessage("OK");
resp->setContentType("text/plain");
const Callback& cb = it->second;
resp->setBody(cb(req.method(), args)); // 调用cb将返回的字符串传给setBody
ok = true;
}
}
}
}
if (!ok)
{
resp->setStatusCode(HttpResponse::k404NotFound);
resp->setStatusMessage("Not Found");
}
//resp->setCloseConnection(true);
}
}
测试程序
#include <muduo/net/inspect/Inspector.h>
#include <muduo/net/EventLoop.h>
#include <muduo/net/EventLoopThread.h>
using namespace muduo;
using namespace muduo::net;
int main()
{
EventLoop loop;
EventLoopThread t; // 监控线程 ,这里“线程该没有真正创建,t.startLoop()函数才是真正创建”
/*Inspector 的loop 和main thread 的loop是不一样的,也就是说,现在已经有两个loop了*/
Inspector ins(t.startLoop(), InetAddress(12345), "test");
loop.loop();
}
在浏览器中输入127.0.0.1:12345/proc/status
Name: inspector_test
State: S (sleeping)
Tgid: 2030
Pid: 2030
PPid: 1907
TracerPid: 0
Uid: 1000 1000 1000 1000
Gid: 1000 1000 1000 1000
FDSize: 256
Groups: 4 20 24 46 116 118 124 1000
VmPeak: 12348 kB
VmSize: 12348 kB
VmLck: 0 kB
VmHWM: 1580 kB
VmRSS: 1580 kB
VmData: 8408 kB
VmStk: 136 kB
VmExe: 860 kB
VmLib: 2868 kB
VmPTE: 32 kB
VmSwap: 0 kB
Threads: 2
SigQ: 0/9772
SigPnd: 0000000000000000
ShdPnd: 0000000000000000
SigBlk: 0000000000000000
SigIgn: 0000000000001000
SigCgt: 0000000180000000
CapInh: 0000000000000000
CapPrm: 0000000000000000
CapEff: 0000000000000000
CapBnd: ffffffffffffffff
Cpus_allowed: 3
Cpus_allowed_list: 0-1
Mems_allowed: 1
Mems_allowed_list: 0
voluntary_ctxt_switches: 22
nonvoluntary_ctxt_switches: 14
